12 by 10 5In1 Heat Press and Free 12 piece sublimation mug set

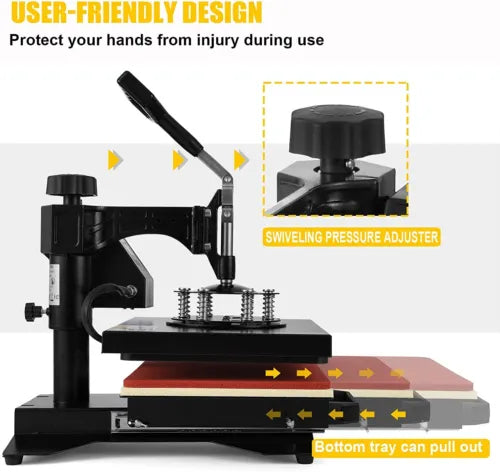

This 5 in 1 heat press machine with 2in1 digital controller is out now. This swing-away heat press boasts all of the must-have attachments. This includes flat platen, mugs and plates. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc.

This all-in-one press can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials.

Temperature setting:

Press “SET”, the upper display will showing “SP”, and the lower of display will showing the temperature of last setting. Then enter into temperature setting option, press ▼ or ▲ (increase or decrease) to set the needed temperature. After setting well, please press “SET”, the upper display will show “SK” to go on the next step for time setting

Time setting:

Press “SET” again, H1 LDE will showing “ST”, then enter into the time setting. Press ▼ or ▲ (increase or decrease) to setting the needed time. (Normally the time is 180 seconds for mugs and 15-20 seconds for t shirt printing)

Fault diagnosis and solution:

1. If the controller box showing nothing when power on, there are 2 solutions:
a. Please check the fuse wire, checking the glass wire to see if the wire damaged or fusing, if damaged, please change the wire.
b. open up the back cover of controller box, and examine the electricity box,to see if some thread fall off or not, if fall off, please match it accordingly.
2. When power on, if the controller display showing 3 lines, please take out the heating platen, and replaced it with another heating panel, or mug heater. If the display is normal, then maybe is the second situation of “b”, the thread wire were disconnect. If still showing 3 line, then is the first situation of “a”, the socket wire were fall out or break.
a. Checking the inner wire of controller box, the white metal socket with 4 lines, please check if the thread is break or disconnect, if disconnect, please match it accordingly or replace it.
b. Checking the wire of heating panel , the red cycle is showing the ends of the cable, one end is 3 thread, please replace 2 thread will be okay.
3. When power on, the controller box showing values but cannot heating up: the display showing the actual room’s temperature, please takes out the plug of head machine, and replaced it with other mugs heater or plate heater. If temperature is heating up normally, then will be the next situation “a”, if cannot heat up, will be “b”situation.
a. Checking the heating wire, the red cycle showing the ends of thread, please replace the white thread will ok.
b. Open up the back cover, and examine the thread to see if some thread disconnected or break, if disconnected, please follow the above “a”, if nothing showing, please following “b” to maintenance. If no break, then replace the controller box.
4. The head controller box heating up normally, the other parts will be not heating up, please change the heating part directly.
5. The head machine’s function is ok, but cannot count down, then please press the third button, this machine will count down. If still cannot count down, please replace the controller box.

Application:

This heat press machine enjoys multifunctions in one machine, it can be used for transferring on t-shirt, mug, plate, cap and so on. Moreover the heating accessory can be joined. You can replace the heating plate easily and conveniently without using any special tools.
