15"x12" 5 in 1 T-Shirt Heat Press Machine Digital Transfer Sublimation Plate Mug

This swing-away heat press boasts all of the must-have attachments. This includes flat platen, mugs and plates. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc.

This all-in-one press can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials.

The swing-away heat press boasts all of the must-have attachments. It has a built-in Teflon coated 15in x 12in (38 x 29cm) heat platen with a full range of heating coils to allow for consistency throughout its surface. The digital timer control is adjustable up to 999 seconds. The features a digital temperature gauge ranging from 0 - 250ºC (about 480ºF).

Advanced Characters:

Fahrenheit and Celsius scale are selectable

Adjustable multi-spring balancer

Allows pressure to be more evenly distributed across the entire platen when it is closed

4/5" thick heating board

Built-in structural support to maintain flatness

Warm up quickly

Offers even heating

Upgraded aluminium alloy cradle

Detached cradle for use of the mug elements

Compact size and lightweight, as compared to standard mug cradles

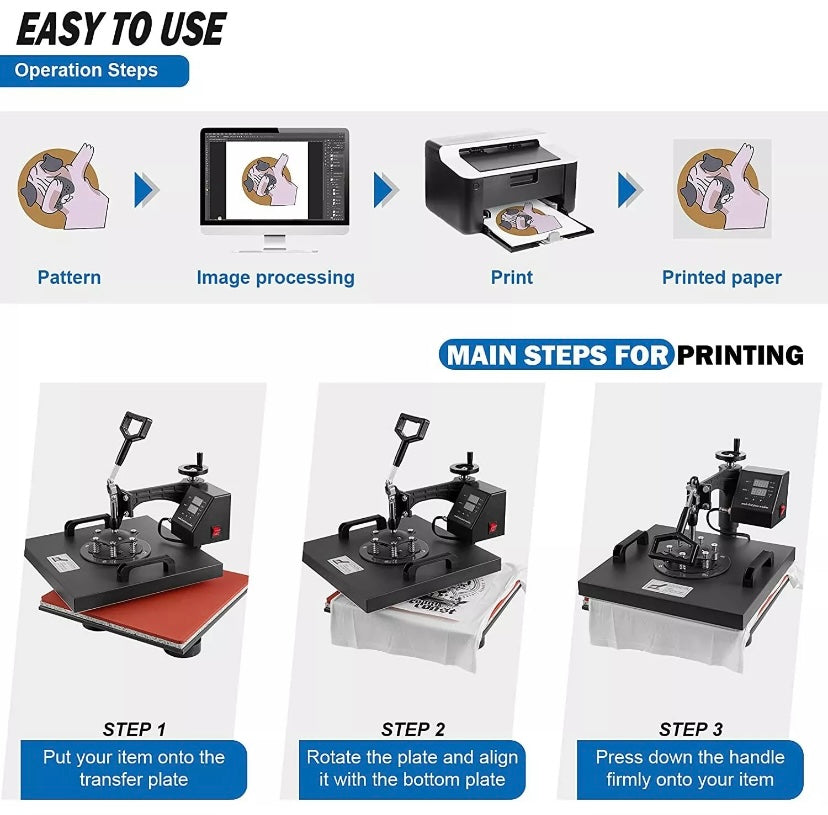

A. Initial Temperature Setting (Range: 80~480 Degree F)

Press the “mode button” , see the “set light” turning red. Then press the “plus / minus key” to set the initial heating temperature.

B. Proper Heating Time Setting (Range: 0~999 Sec.)

Press the “mode button” for THE SECOND TIME; see the “time light” turning red. Then press the “plus or minus key” to set the proper heating time.

C. Finish the Setting and Stands by to Work

Press the “mode button” for THE THIRD TIME; finish the setting and the machine stands by to work.

Fault diagnosis and solution:

1. If the controller box showing nothing when power on, there are 2 solutions:
a. Please check the fuse wire, checking the glass wire to see if the wire damaged or fusing, if damaged, please change the wire.
b. open up the back cover of controller box, and examine the electricity box,to see if some thread fall off or not, if fall off, please match it accordingly.
2. When power on, if the controller display showing 3 lines, please take out the heating platen, and replaced it with another heating panel, or mug heater. If the display is normal, then maybe is the second situation of “b”, the thread wire were disconnect. If still showing 3 line, then is the first situation of “a”, the socket wire were fall out or break.
a. Checking the inner wire of controller box, the white metal socket with 4 lines, please check if the thread is break or disconnect, if disconnect, please match it accordingly or replace it.
b. Checking the wire of heating panel , the red cycle is showing the ends of the cable, one end is 3 thread, please replace 2 thread will be okay.
3. When power on, the controller box showing values but cannot heating up: the display showing the actual room’s temperature, please takes out the plug of head machine, and replaced it with other mugs heater or plate heater. If temperature is heating up normally, then will be the next situation “a”, if cannot heat up, will be “b”situation.
a. Checking the heating wire, the red cycle showing the ends of thread, please replace the white thread will ok.
b. Open up the back cover, and examine the thread to see if some thread disconnected or break, if disconnected, please follow the above “a”, if nothing showing, please following “b” to maintenance. If no break, then replace the controller box.
4. The head controller box heating up normally, the other parts will be not heating up, please change the heating part directly.
5. The head machine’s function is ok, but cannot count down, then please press the third button, this machine will count down. If still cannot count down, please replace the controller box.
