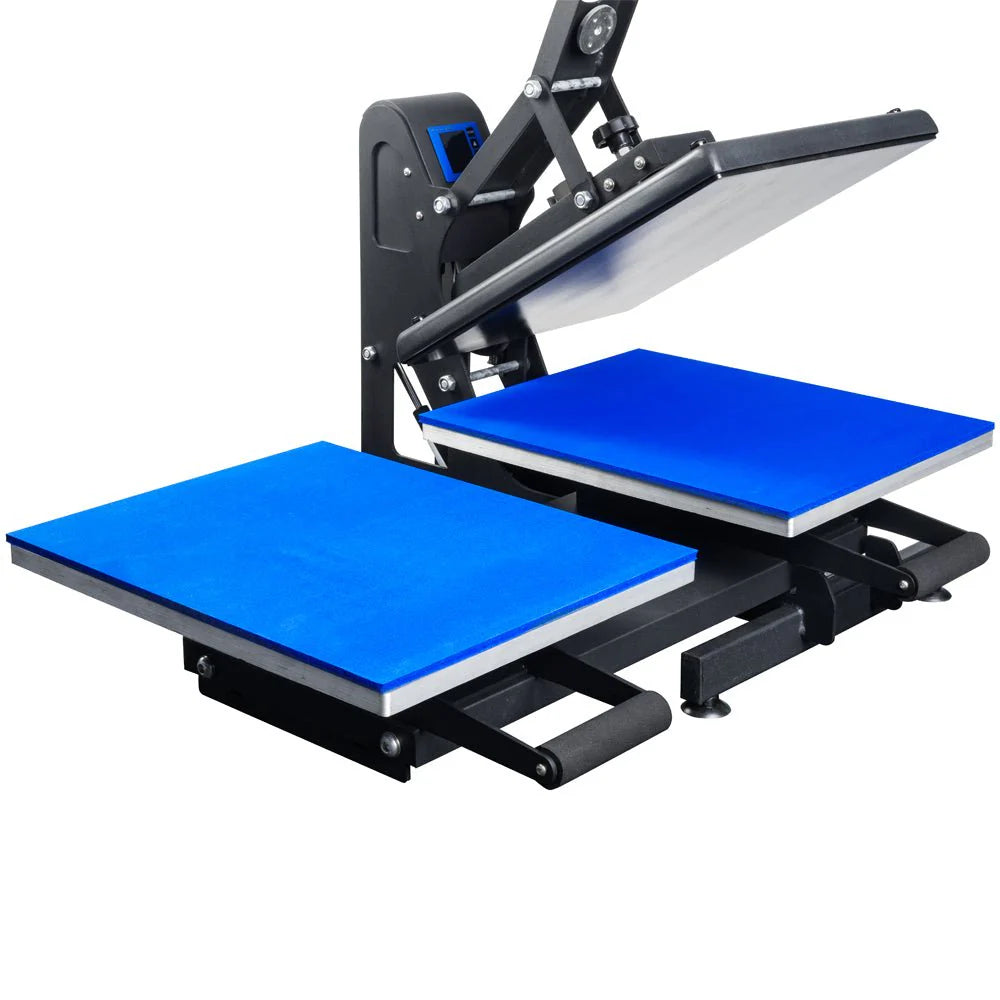

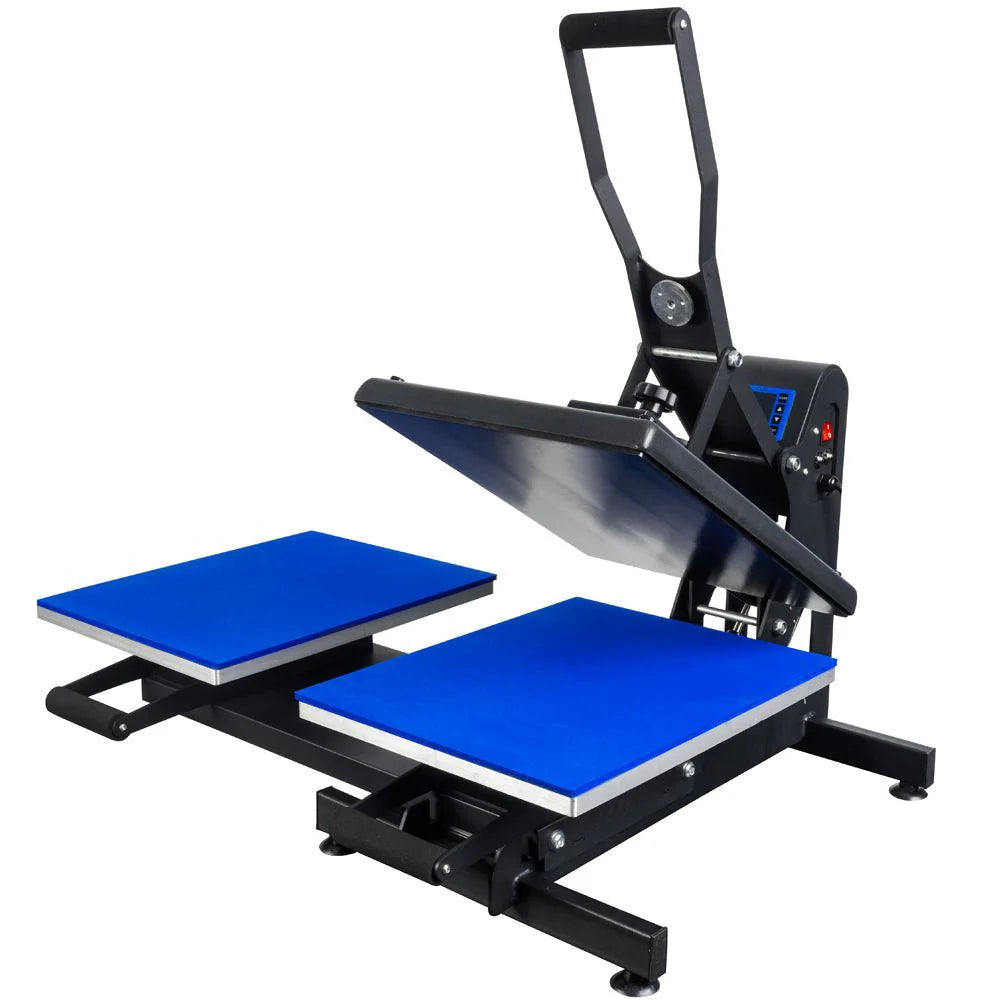

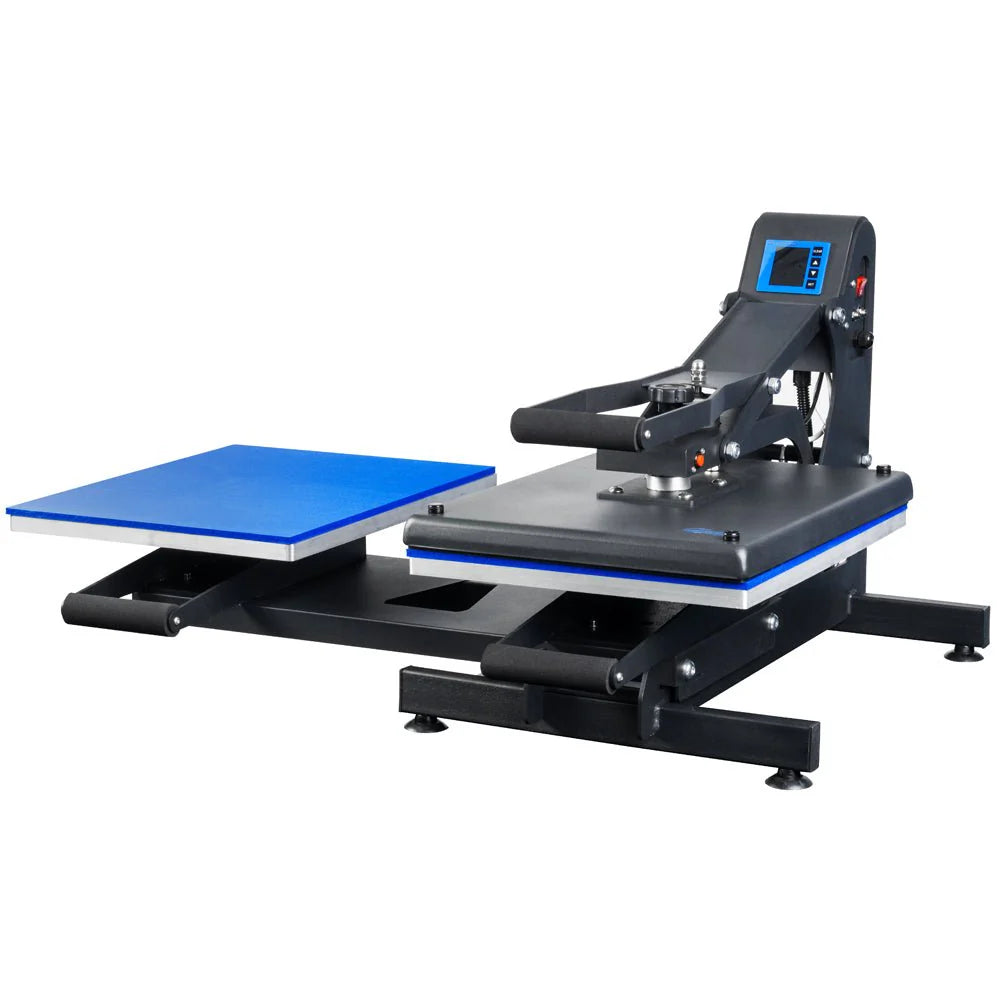

16" X 20" Double Station Auto-Open Heat Press

Boost efficiency with the HPN Black Series 16" x 20" Double Station Auto-Open Heat Press. Designed to maximize productivity, this heat press features two independent lower platens that glide smoothly side-to-side on durable base rails. While one item is being pressed, the second station allows you to prep the next transfer—keeping your workflow moving without interruption. The dual-station design also provides a heat-free workspace for precise transfer alignment, ensuring safety and accuracy with every press.

Every mechanical and technical detail has been developed with precision. The powerful clamp mechanism ensures increased leverage and torque with minimal effort. Provides complete end-to-end even pressure and heating. Top of its class digital temperature and timer gauge provides accurate readings in both Fahrenheit and Celsius degree measure. This press is unmatched in quality and craftsmanship in its size class. A complete commercial quality, business grade heat press at an unbeatable price.

Excels in all heat press applications including: , , rhinestones, , screen printed transfers, Direct to Garment prints and much more.

*Note: The lower platen of this press is no longer painted black as pictured in the product photo. Instead, it features a raw steel finish. This difference is purely cosmetic and does not change the overall functionality of this press.*

FEATURES

	Double Station: Save time and increase your production with 2 separate lower platen workstations. These platens slide side-to-side on rails that are located on the base of the press, allowing you to heat press one item while you prepare another for transfer!
	Magnetic Auto-Open Release: Activated magnetically, the auto-open release feature on the HPN Black Series allows the heat press to open automatically when the timer reaches zero, giving your time to focus on other aspects of your project while your material transfers.
	Upgraded Time/Temperature Gauge: Setting the time, temperature and changing temperature scale from C to F is now easier with the HPN Black Series. The advanced digital gauge displays temperatures with a 4-degree accuracy range. The automatic timer alarm begins to sound 3 seconds before it reaches zero to prevent overheating of your material.
	Dual Fuse Design: The HPN Black Series heat press features a dual fuse design for added protection of your home electrical system. If one fuse goes out, the next one is ready to go in seconds. This is all part of the thought process we had when designing the HPN Black Series, to make a reliable machine without any downtime.

• Rugged and durable for years of trouble-free performance
• Opens approximately 50 degrees
• Thick items capable (up to 1/2 inch thick)
• Full pressure range knob
• Micro processor precision heat and temperature gauge
• Padded reinforced double bar "Strong handle" for easy high pressure application
• Scratch resistant baked-on paint
• Adjustable low to high pressure clamp
• Full range heating coils for quick heat up
• Heat indicating light
• Electronic time control indicates completion of heat press cycle
• Electronic constant temperature control systems for accuracy of 4 degrees
• Complete commercial business grade
• 16" x 20" Non-Stick Coated Heat Platen
• Digital Temperature Control
• Digital Automatic Timer
• Adjustable Flotation Feature
• Optional available

SPECIFICATIONS

• Heat Press Style: Double Station/Auto-Open
• Heat Press Base Dimensions:20” x 26”(Length x Depth)
• Heating Element Size:15.75" x 19.75"(L x W)
• Overall Heat Press Dimensions:59" x 32" x 38"(L x D x H in open position)
• Heating Element Size: Double Station 16" x 20"
• Gauge Reading: Fahrenheit or Celsius degree measure
• Fuse Protection: Double Fuse Protection Layer
• Voltage: 110V-120V
• Power Rating: 1450W
• Temperature Range: 0° - 400º F
• Time Range: 0-999 Seconds
• Shipping Weight: 214 lbs
• Shipping Dimensions: 41.3" x 35.4" x 29.1"
