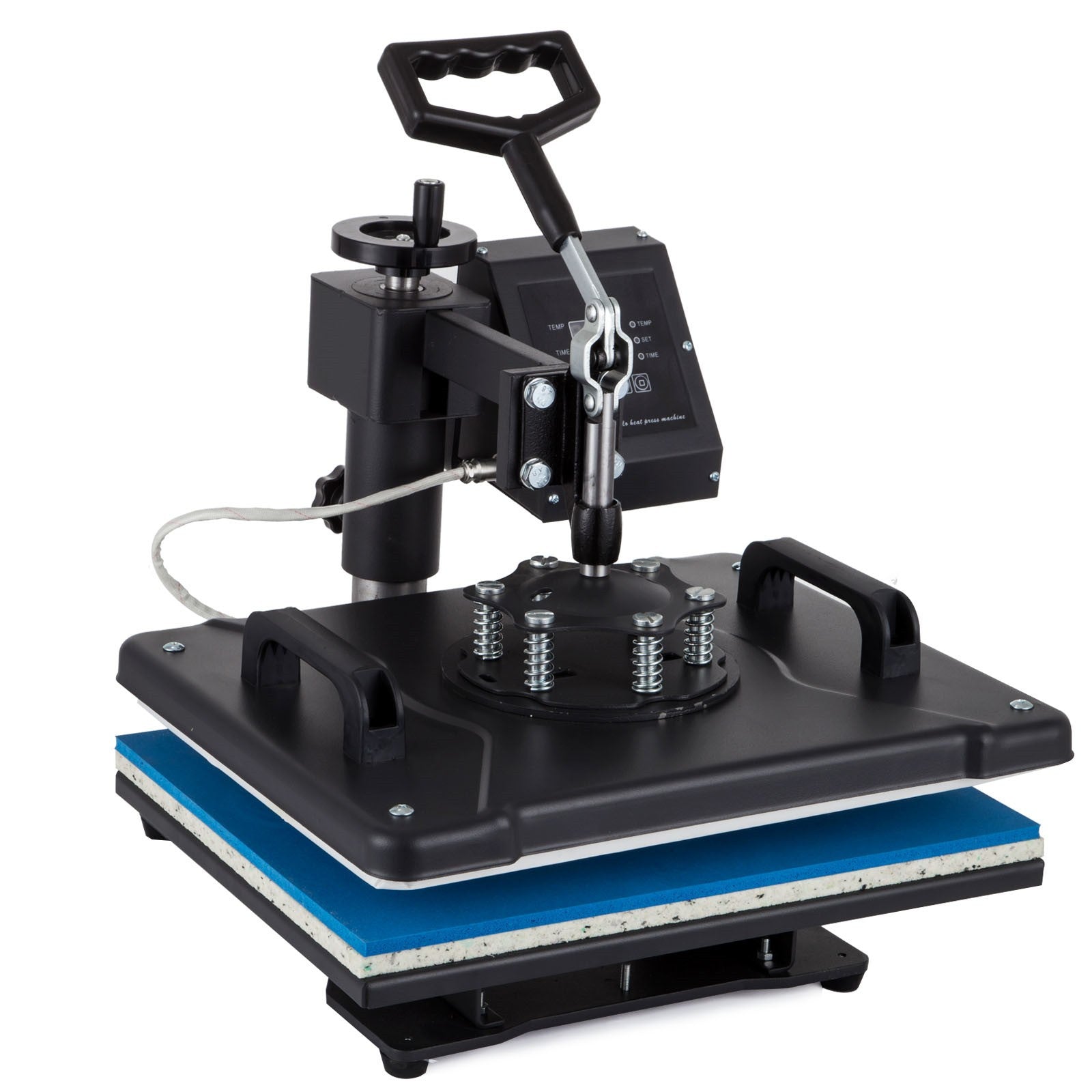

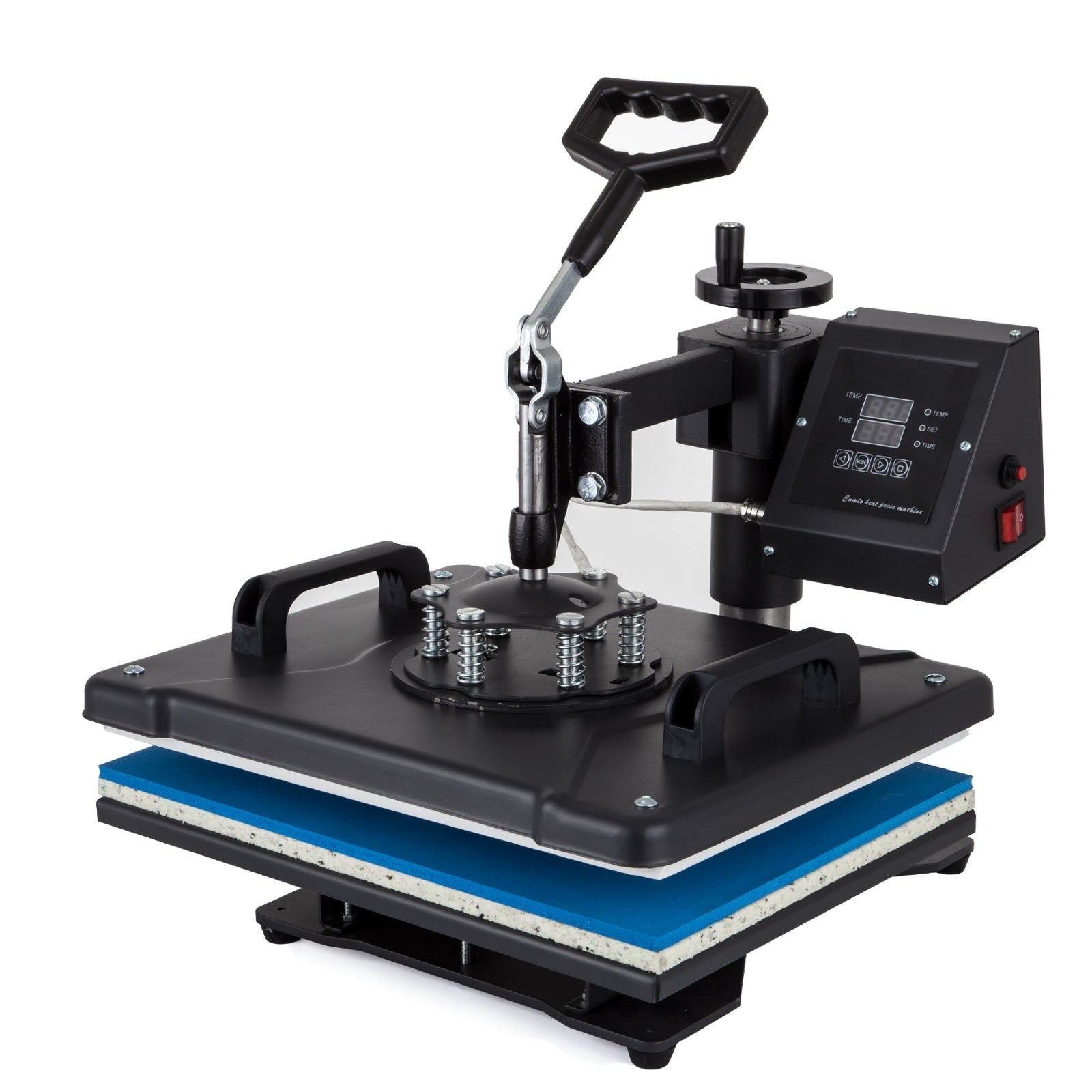

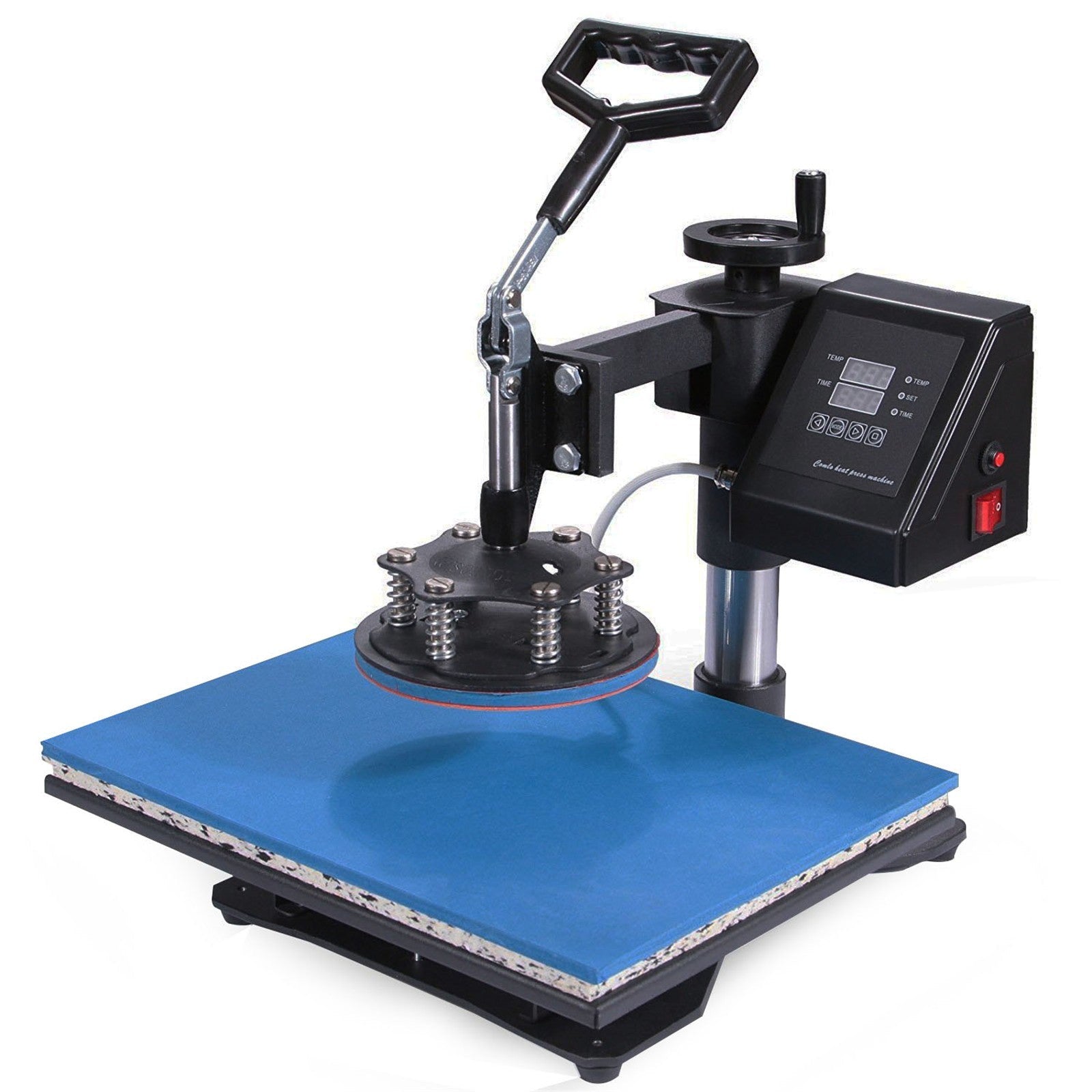

Large 15" x 12" transfer element - The 15" x 12" (38 x 29cm) heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc.

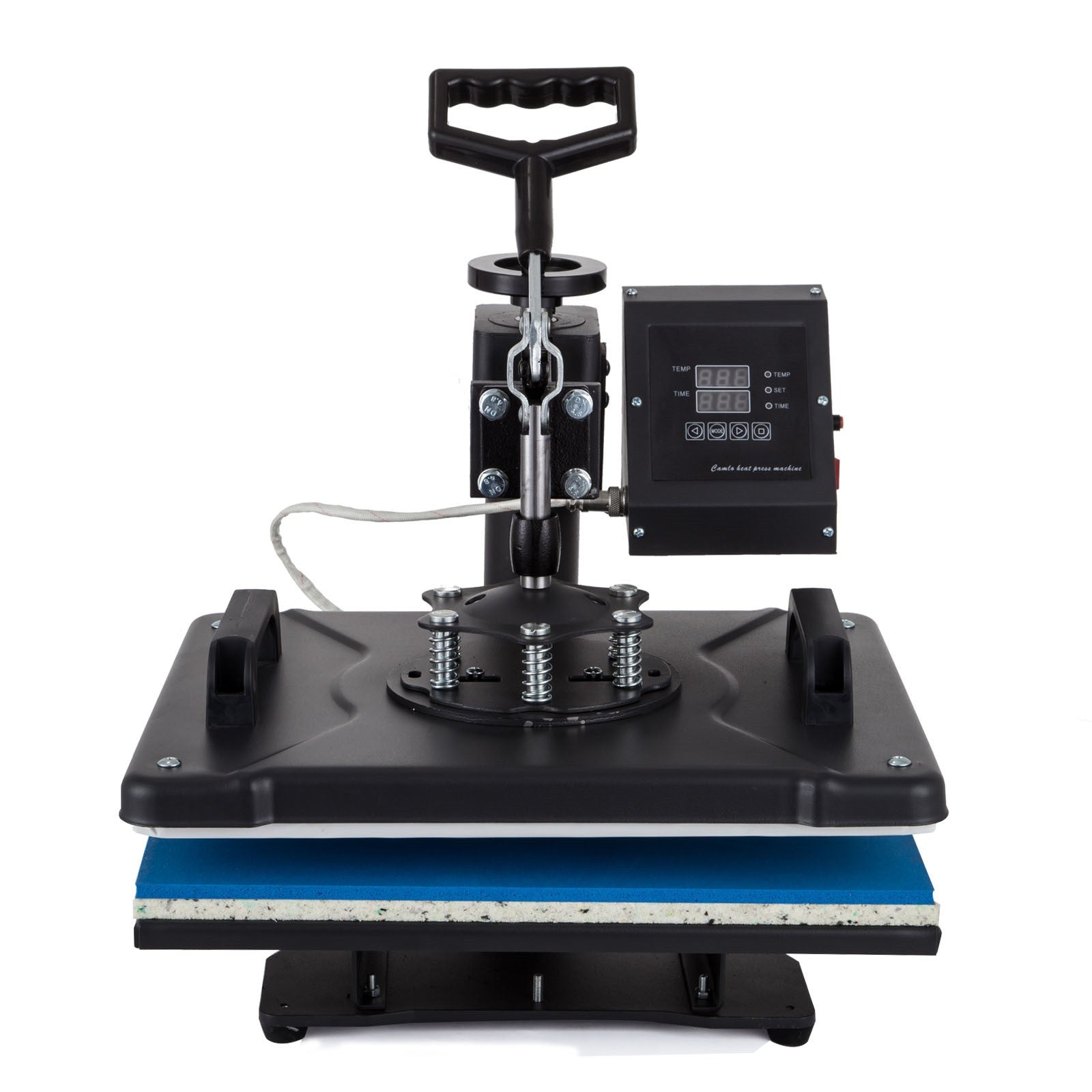

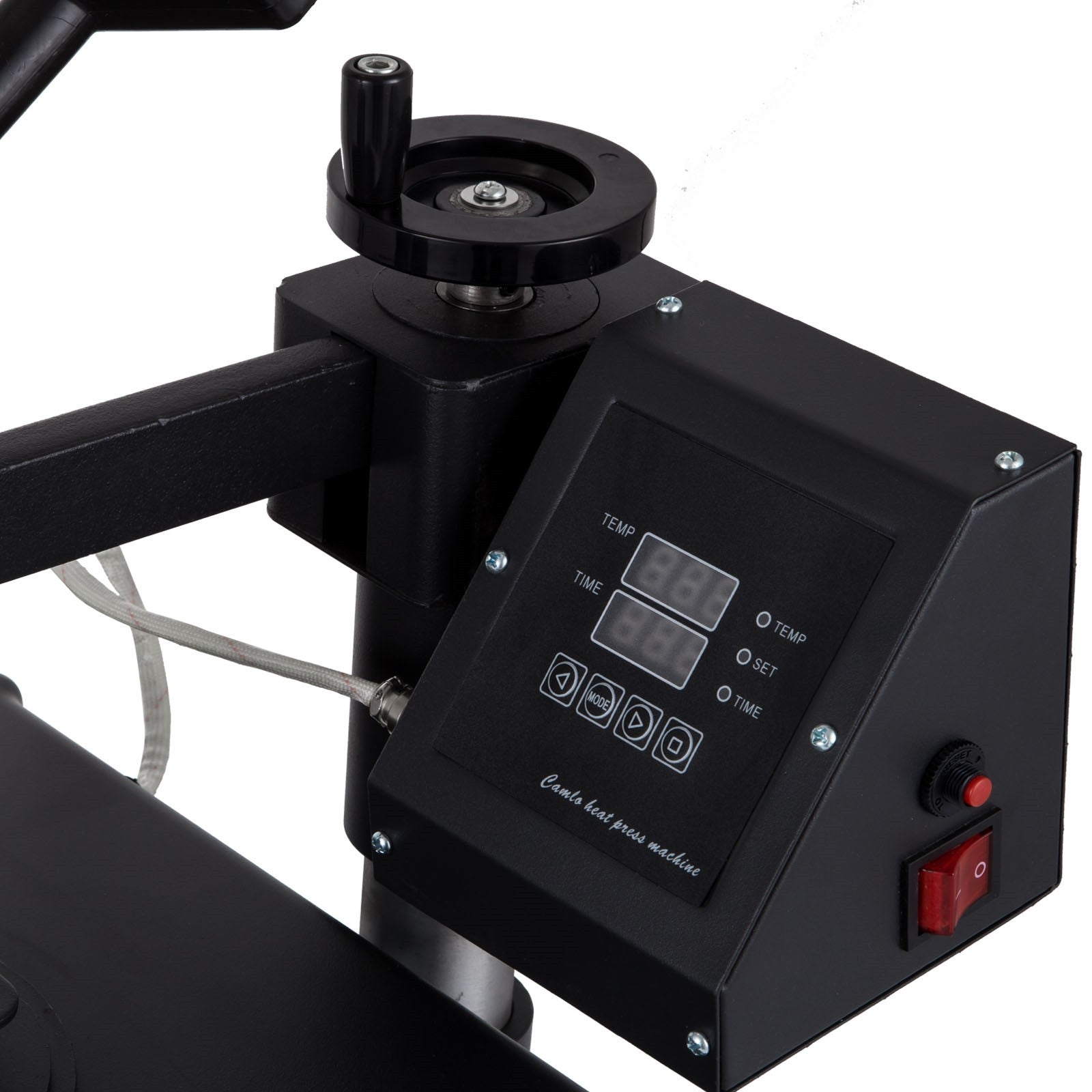

Digital LED controller - Preset the desired temperature and timer. Intelligent audible alarm after the transfer done.

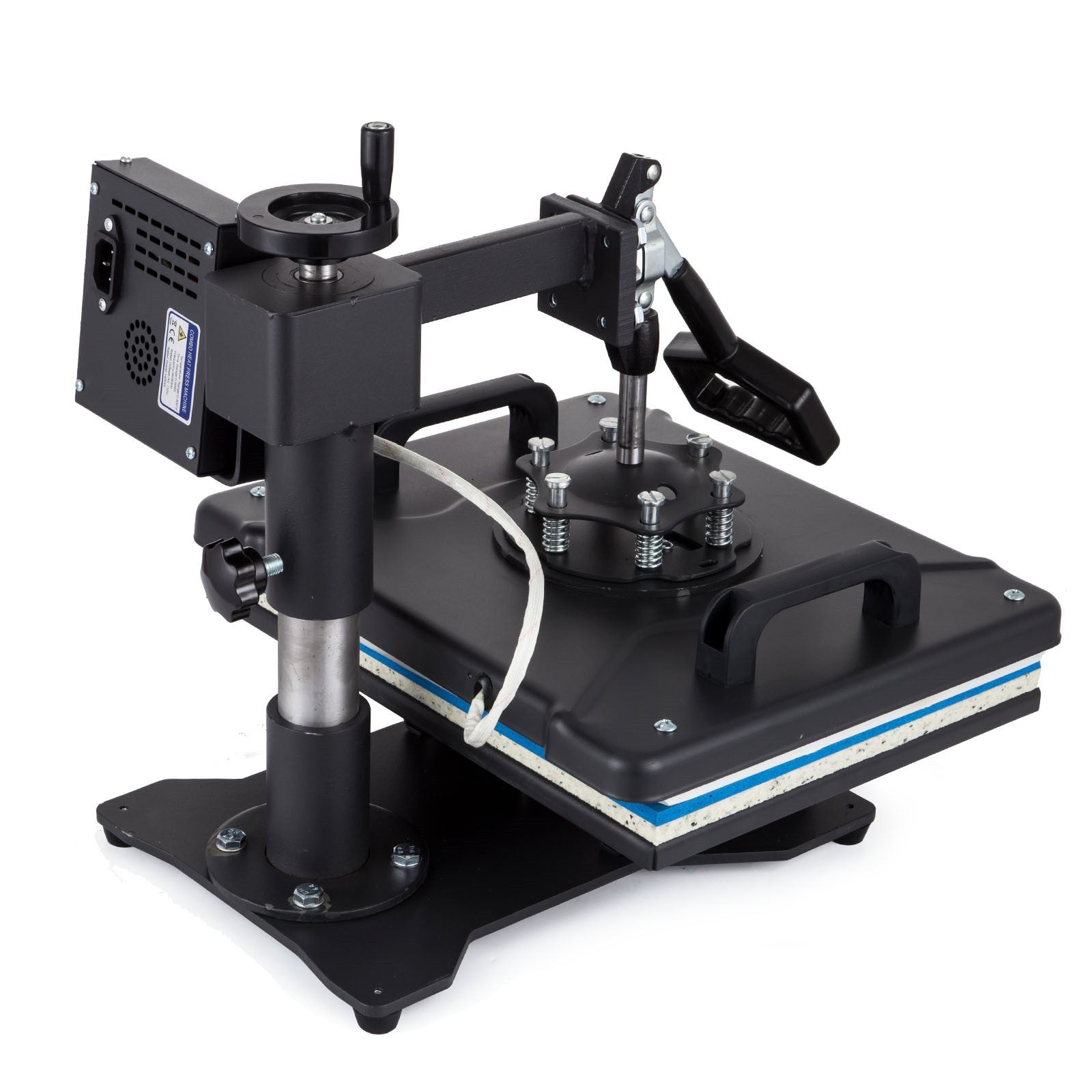

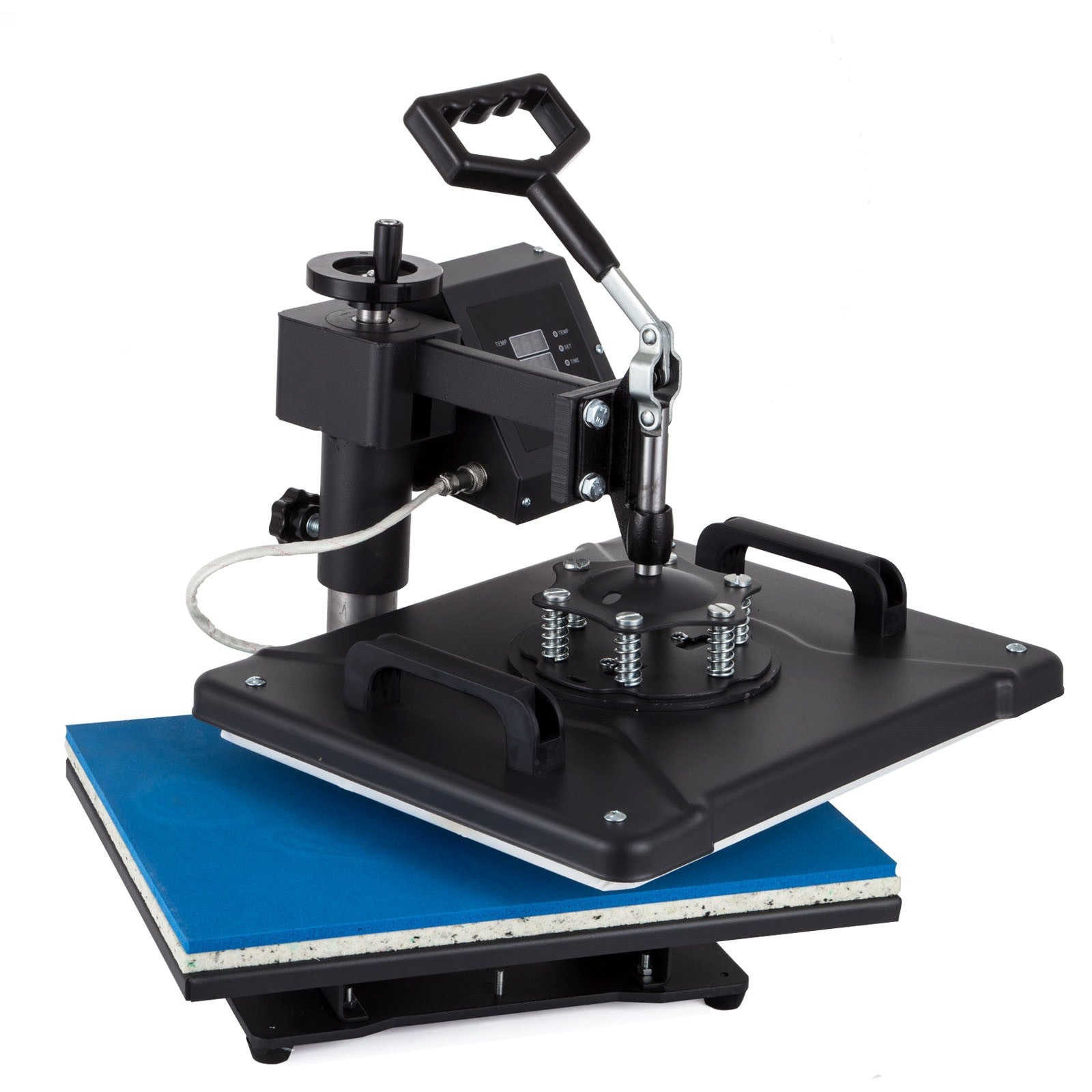

Full 360-degree rotation of swing-away design - Allows the heating element to be moved safely aside and reduce the chances of accidental contact.
Full-range pressure-adjustment knob - This allows the pressure to be adjusted according to the thickness of the material you're transferring to.
Teflon-coated platen press element - The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
2 4/5" Long arm handle- Comfortable rubber grip for everyday use and long production runs.
Detachable lower platform - It is elevated with dual supports. Easily exchange to other elements.

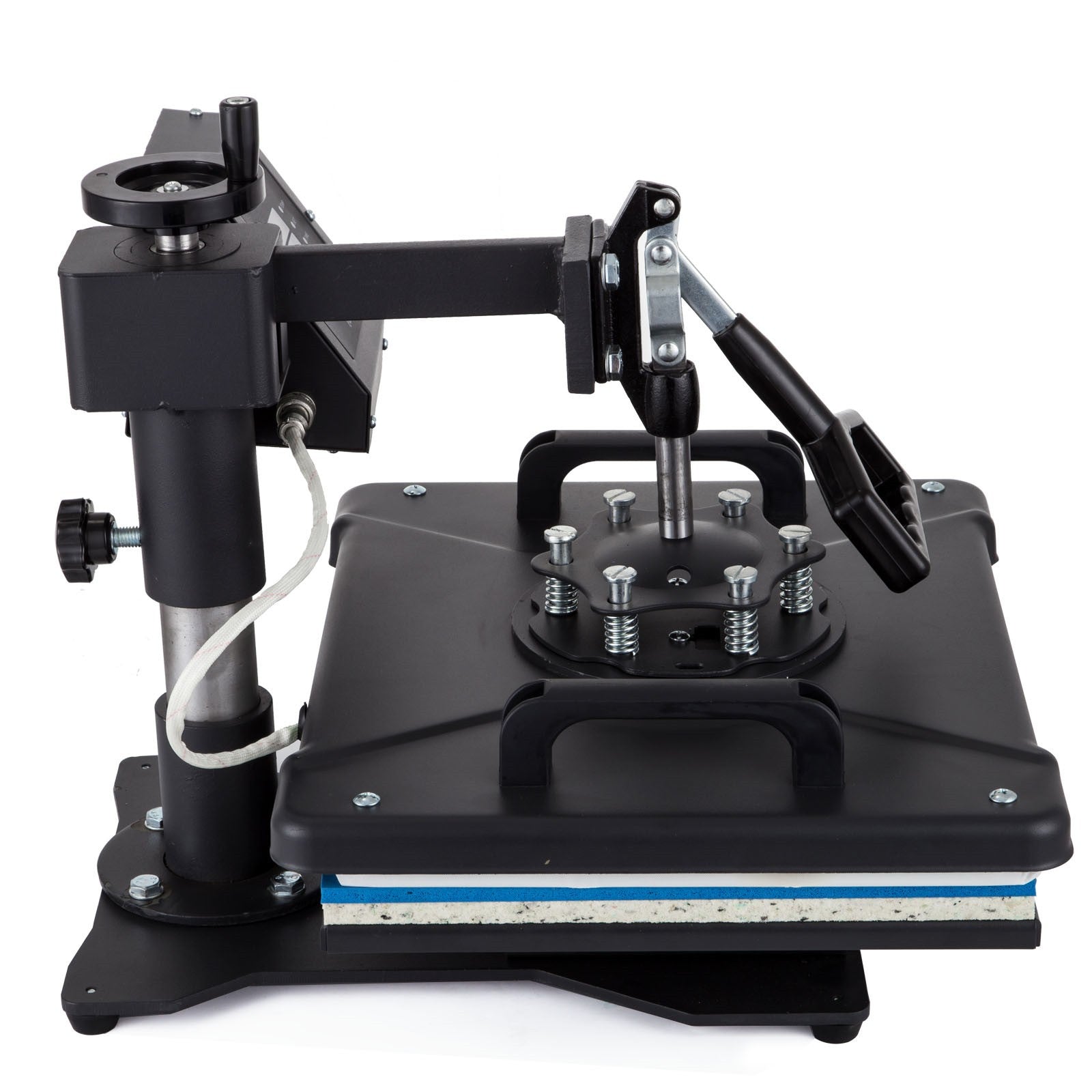

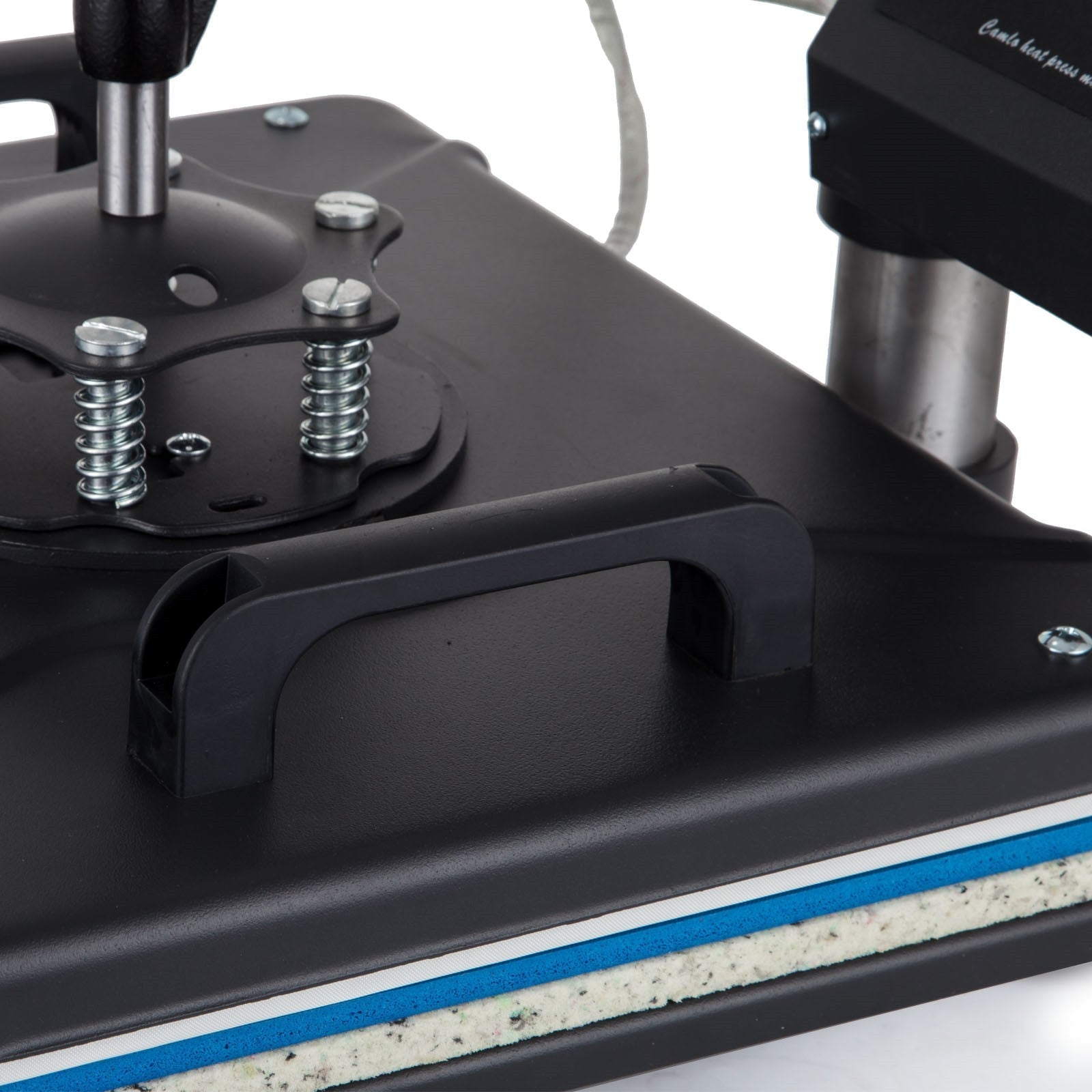

Adjustable multi-spring balancer - Allows pressure to be more evenly distributed across the entire platen when it is closed.
4/5" thick heating board - Built-in structural support to maintain flatness. Warm up quickly and offer even heating.

How to use:

1.Temperature setting:

Press “SET”, the upper display will showing "SP", the lower of display will showing the temperature of last setting.Press UP or DOWN to adjust the temperature.

2.Time setting:

Double Press “SET”Buton, see the "S" on the upper screen and time on the lower screen. Press UP or DOWN to adjust the time.

3.Start to coundown:

Press the DOWN BUTTON to start to countdown

Fault diagnosis and solution:
1. If the controller box showing nothing when power on, there are 2 solutions:
a. Please check the fuse wire, checking the glass wire to see if the wire damaged or fusing, if damaged, please change the wire.
b. open up the back cover of controller box, and examine the electricity box,to see if some thread fall off or not, if fall off, please match it accordingly.
2. When power on, if the controller display showing 3 lines, please take out the heating platen, and replaced it with another heating panel, or mug heater. If the display is normal, then maybe is the second situation of “b”, the thread wire were disconnect. If still showing 3 line, then is the first situation of “a”, the socket wire were fall out or break.
a. Checking the inner wire of controller box, the white metal socket with 4 lines, please check if the thread is break or disconnect, if disconnect, please match it accordingly or replace it.
b. Checking the wire of heating panel , the red cycle is showing the ends of the cable, one end is 3 thread, please replace 2 thread will be okay.
3. When power on, the controller box showing values but cannot heating up: the display showing the actual room’s temperature, please takes out the plug of head machine, and replaced it with other mugs heater or plate heater. If temperature is heating up normally, then will be the next situation “a”, if cannot heat up, will be “b”situation.
a. Checking the heating wire, the red cycle showing the ends of thread, please replace the white thread will ok.
b. Open up the back cover, and examine the thread to see if some thread disconnected or break, if disconnected, please follow the above “a”, if nothing showing, please following “b” to maintenance. If no break, then replace the controller box.
4. The head controller box heating up normally, the other parts will be not heating up, please change the heating part directly.
5. The head machine’s function is ok, but cannot count down, then please press the third button, this machine will count down. If still cannot count down, please replace the controller box.
Application:

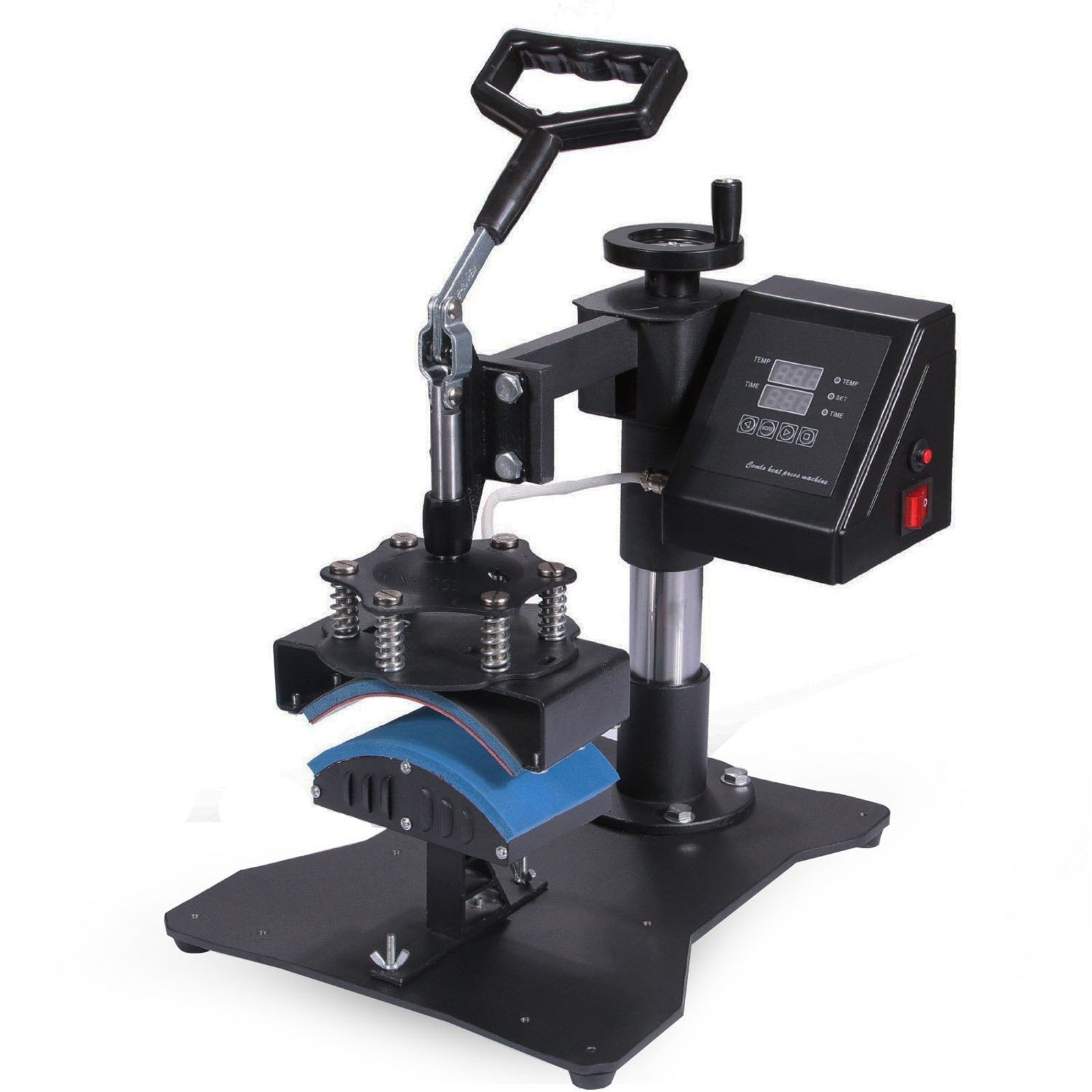

This heat press machine enjoys multifunctions in one machine, it can be used for transferring on t-shirt, mug, plate, cap and so on. Moreover the heating accessory can be joined. You can replace the heating plate easily and conveniently without using any special tools.



Advanced Characters:
Fahrenheit and Celsius scale are selectable
Adjustable multi-spring balancer
Allows pressure to be more evenly distributed across the entire platen when it is closed
4/5" thick heating board
Built-in structural support to maintain flatness
Warm up quickly
Offers even heating
Upgraded aluminium alloy cradle

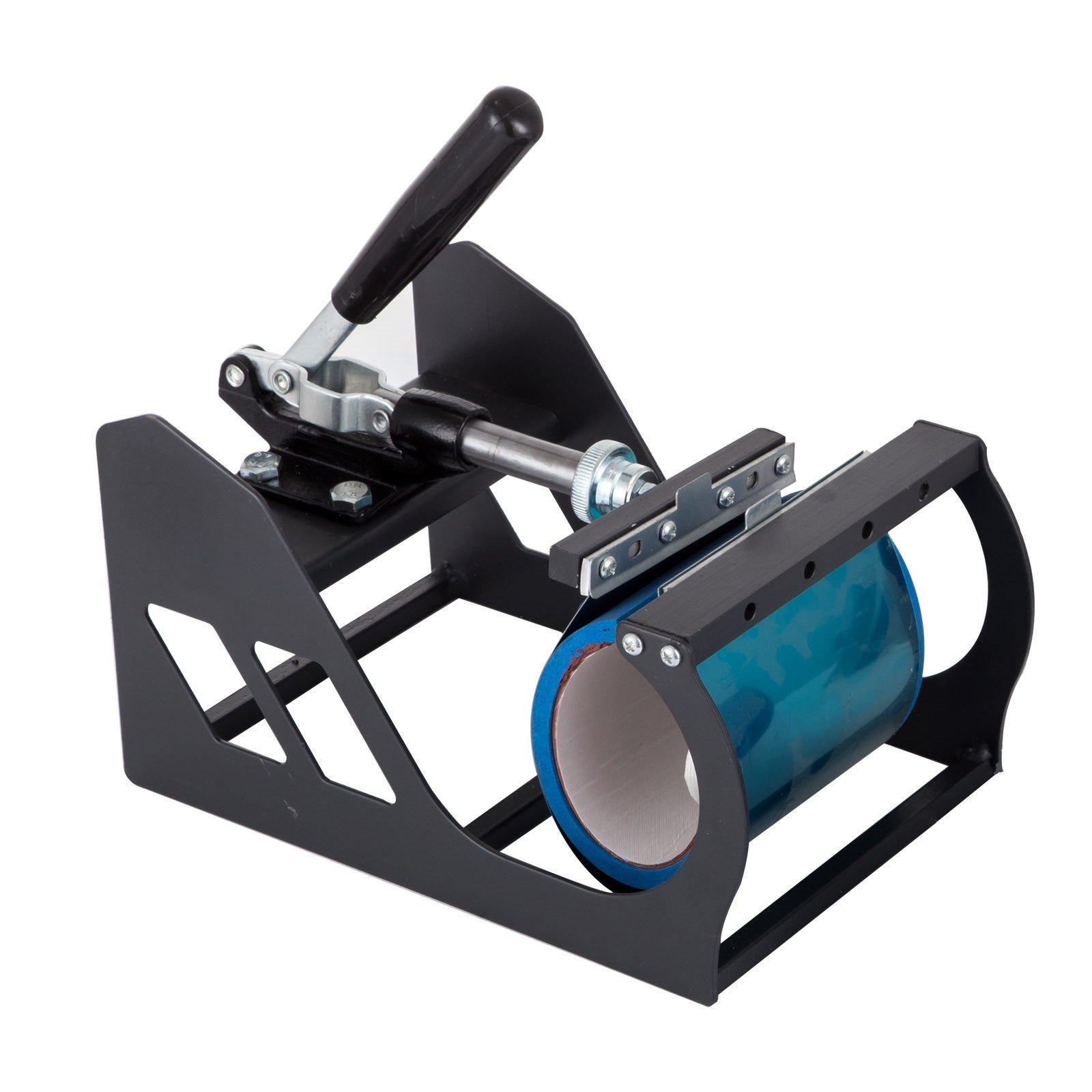

Detached cradle for use of the mug elements
Compact size and lightweight, as compared to standard mug cradles
