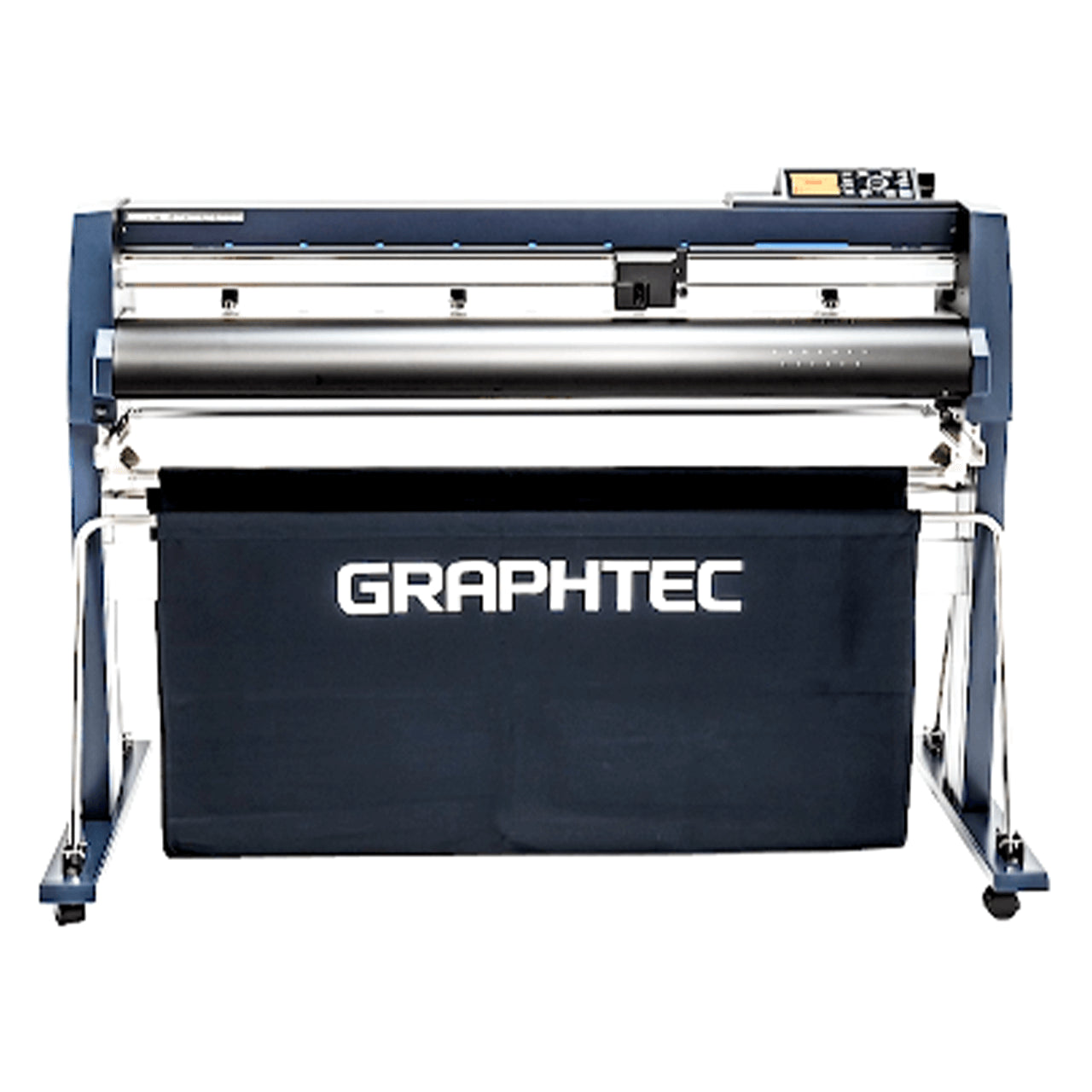

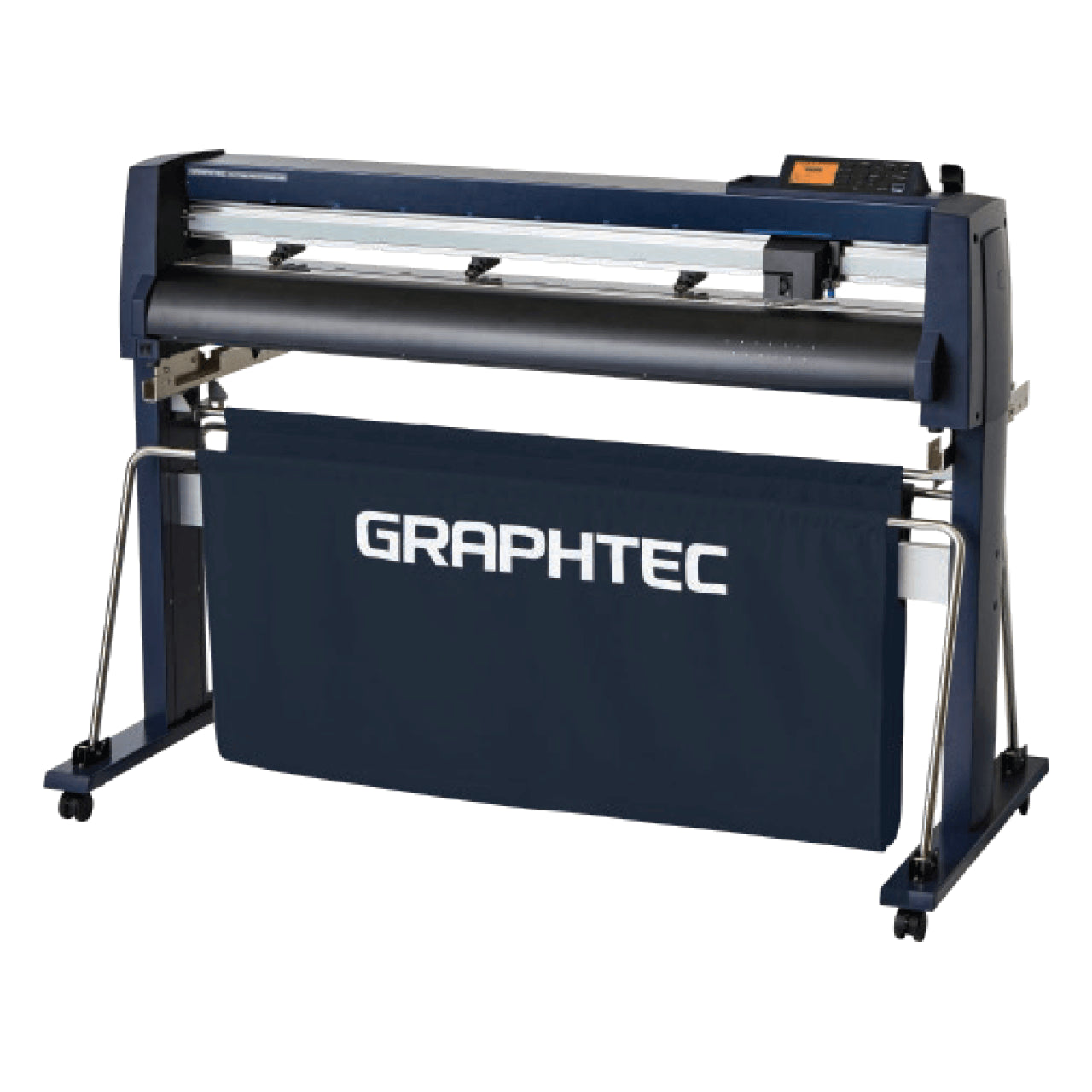

Graphtec FC9000-100 42″ Vinyl Cutter Plotter — Wide-Format Precision for High-Volume Production

The Graphtec FC9000-100 42″ Vinyl Cutter Plotter is the wide-format powerhouse of Graphtec’s flagship FC9000 Series. Designed for professional sign shops, apparel decorators, and industrial graphics producers, this cutter delivers exceptional tracking accuracy, speed, and reliability across long production runs and wider media formats. Built on Graphtec’s legendary cutting precision, the FC9000-100 is engineered to meet the demands of modern, high-throughput environments.

Advanced Print & Cut Accuracy

• ARMS 8.0 registration system: Accurately detects registration marks on glossy, metallic, reflective, and specialty printed media.
• Contour cutting excellence: Produces clean, consistent cuts for decals, stickers, heat transfer graphics, and labels.
• Improved sensor technology: Ensures reliable mark detection even on challenging substrates.

Production-Optimized Workflow

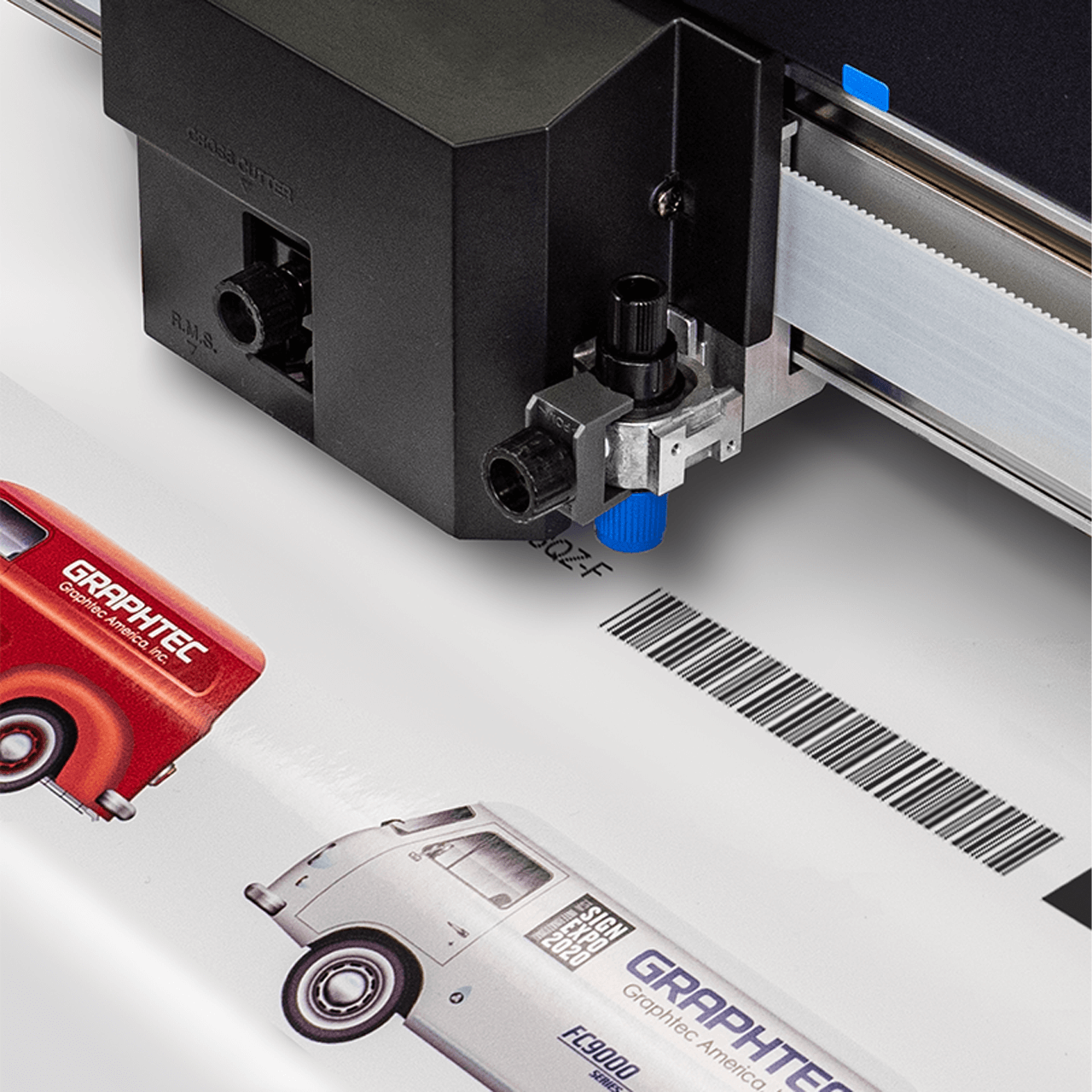

• DataLink barcode system: Automatically loads and executes cut files from USB or RIP software using printed barcodes.
• USB thumb-drive operation: Run jobs without a PC connection for streamlined production.
• Network connectivity: Ethernet support allows seamless integration into multi-station workflows.

Built for Long Runs & Heavy Media

• Re-engineered grit roller configuration: Enhances media grip and tracking accuracy over long distances.
• Up to 600 gf cutting force: Handles thicker and denser materials with confidence.
• Dual tool positions: Optimized blade usage for both fine detail contour cutting and heavier die-cut applications.

Wide Material Compatibility

• Standard and specialty vinyl films
• Reflective, fluorescent, and high-intensity materials
• Heat transfer vinyl (HTV)
• Sandblast resist and rubber materials
• Automotive tint, paint protection film, and magnet media

Software & Control

• Cutting Master 5: Plug-in for Adobe Illustrator and CorelDRAW for seamless design-to-cut workflows.
• Graphtec Studio 2: Standalone design and cutting software for Mac and PC users.
• Remote operation support: Monitor and control cutter status directly from connected software.

Key Specifications (FC9000-100 42″)

• Maximum Cutting Width: 42 in (1067 mm)
• Maximum Media Width: 48 in (1219 mm)
• Maximum Cutting Speed: 58.5 in/sec
• Maximum Cutting Force: 600 gf
• Mechanical Resolution: 0.005 mm
• Interfaces: USB 2.0, Ethernet

What’s Included

• Graphtec FC9000-100 42″ Vinyl Cutter Plotter
• Heavy-duty stand with media basket
• Standard blade and blade holder
• Cutting Master 5 & Graphtec Studio 2 software (download)
• USB cable and power cord
