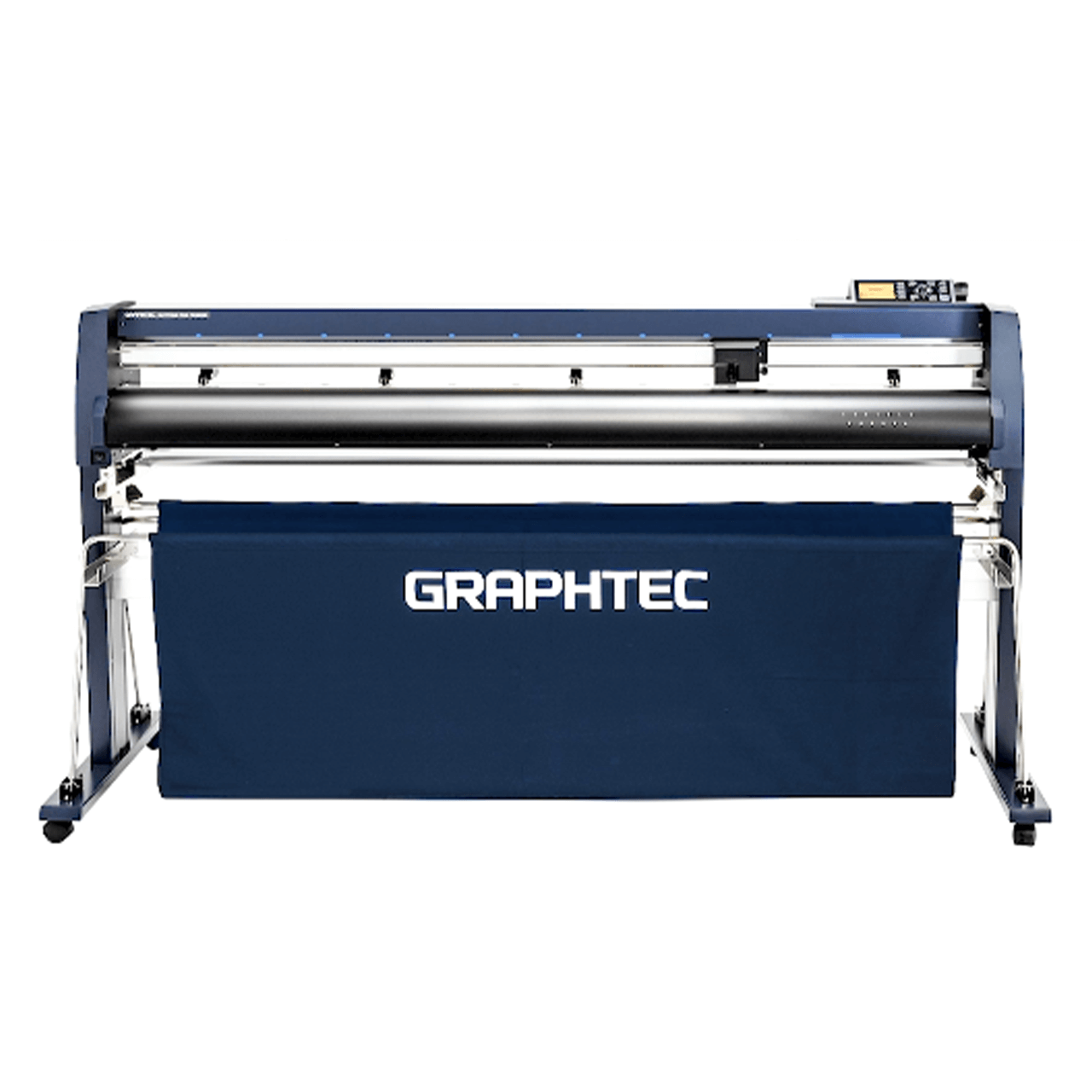

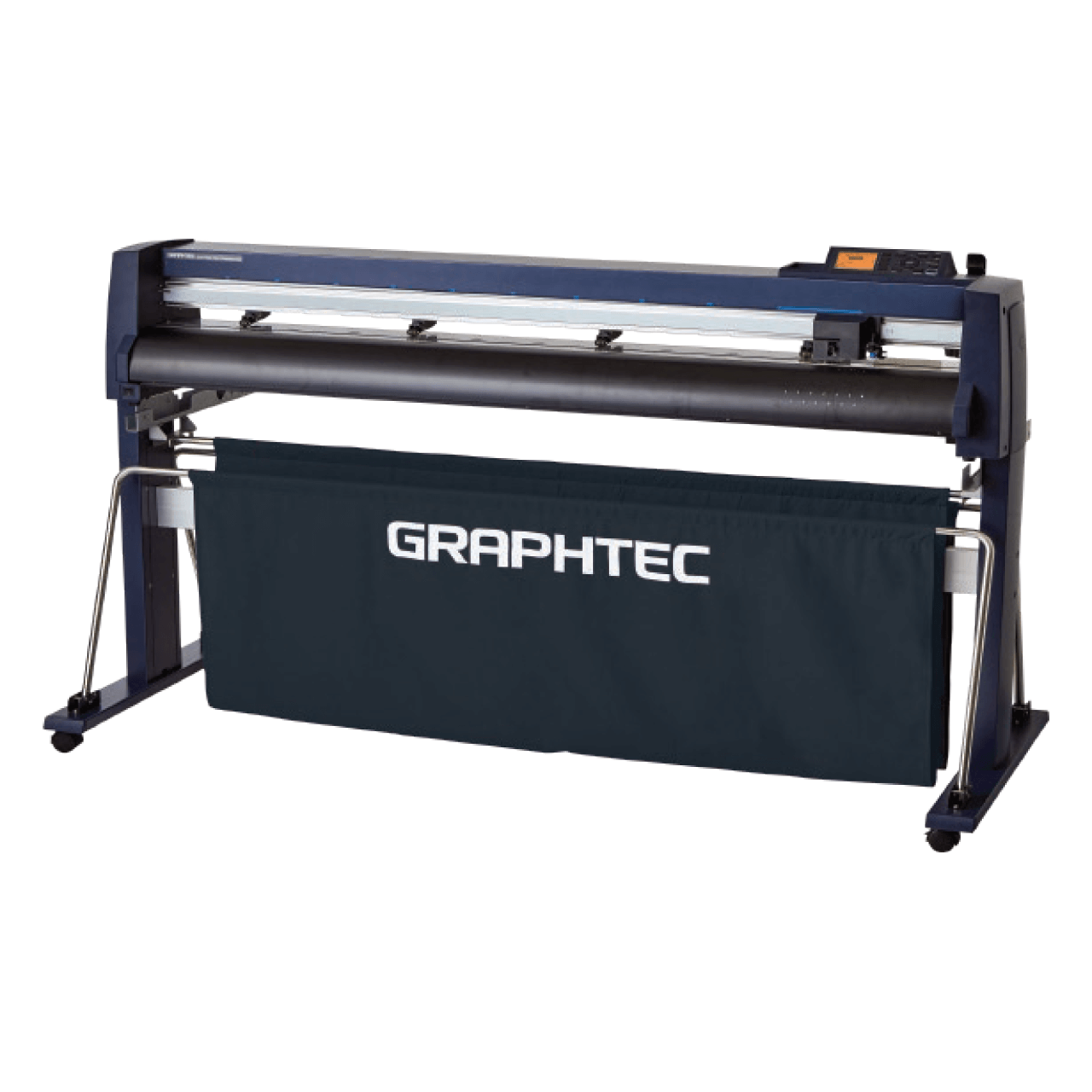

Graphtec FC9000-160 64″ Vinyl Cutter Plotter — Ultra-Wide Format Precision for Professional Production

The Graphtec FC9000-160 64″ Vinyl Cutter Plotter is the ultimate wide-format cutting solution engineered for high-volume sign shops, vehicle wrap specialists, and graphics production environments that demand ultra-wide media capacity with maximum accuracy. Part of Graphtec’s flagship FC9000 Series, the FC9000-160 expands upon proven cutting performance with robust automation, advanced registration sensing, and heavy-duty media handling to support long runs and complex workflows.

Advanced Print & Cut Accuracy

• ARMS 8.0 registration sensing: Detects marks reliably on challenging surfaces including glossy, metallic, and reflective printed media.
• Contour cutting precision: Produces consistent, sharp edges on decals, vehicle graphics, and signage.
• Improved optical sensors: Ensures accurate detection and repeatable results across wide media spans.

High-Volume Workflow Enhancements

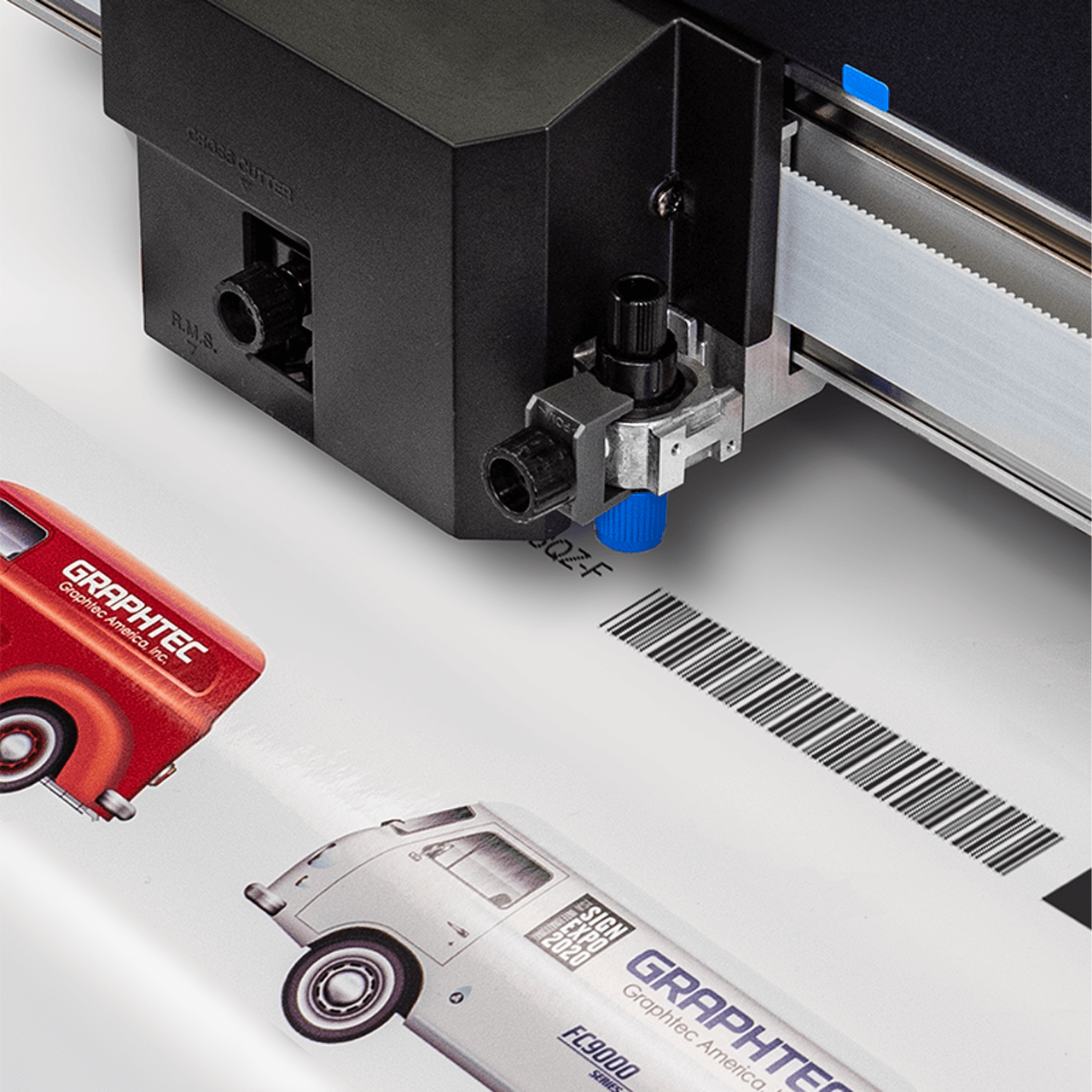

• DataLink barcode automation: Barcode-driven cutting workflows reduce setup time and operator intervention.
• USB thumb drive support: Execute cutting jobs directly from USB without a PC connection.
• Ethernet connectivity: Integrate the cutter into networked production systems for shared use and remote job control.

Heavy-Duty Media Handling

• Re-engineered grit roller system: Enhances grip and tracking accuracy on ultra-wide media surfaces.
• Maximum cutting force: Up to 600 gf for reliable performance on thicker and specialized materials.
• Dual tool positions: Separate blade mountings for fine contour cutting and deeper die cuts.
• Optional Take-Up Roller Accessory Add-On: Optional take-up reel supports cut jobs up to 65ft. Increases speed and improves accuracy.

Wide Material Compatibility

• Self-adhesive vinyl and sign graphics
• Reflective and high-intensity films
• Heat transfer vinyl (HTV) for apparel and merchandise
• Sandblast resist and specialty films
• Automotive tint and PPF films
• Magnet and thicker flexible materials

Software & Control

• Cutting Master 5: RIP plug-in for Adobe Illustrator and CorelDRAW.
• Graphtec Studio 2: Standalone design and cut software for Mac and PC environments.
• Remote operation: Monitor and control cutting status via connected software.
• DataLink compatibility: Barcode workflows supported for advanced automation.

Key Specifications (FC9000-160 64″)

• Maximum Cutting Width: 64 in (1625 mm)
• Maximum Media Width: 70 in (1778 mm)
• Maximum Cutting Speed: 58.5 in/sec
• Maximum Cutting Force: 600 gf
• Mechanical Resolution: 0.005 mm
• Interfaces: USB 2.0, Ethernet

What’s Included

• Graphtec FC9000-160 64″ Vinyl Cutter Plotter
• Industrial-grade stand with media basket
• Standard blade and blade holder
• Graphtec Studio 2 & Cutting Master 5 software (download)
• USB cable and power cord
