Prestige R2 Pro 13" Curing Oven Bundle

*Must ship freight.*

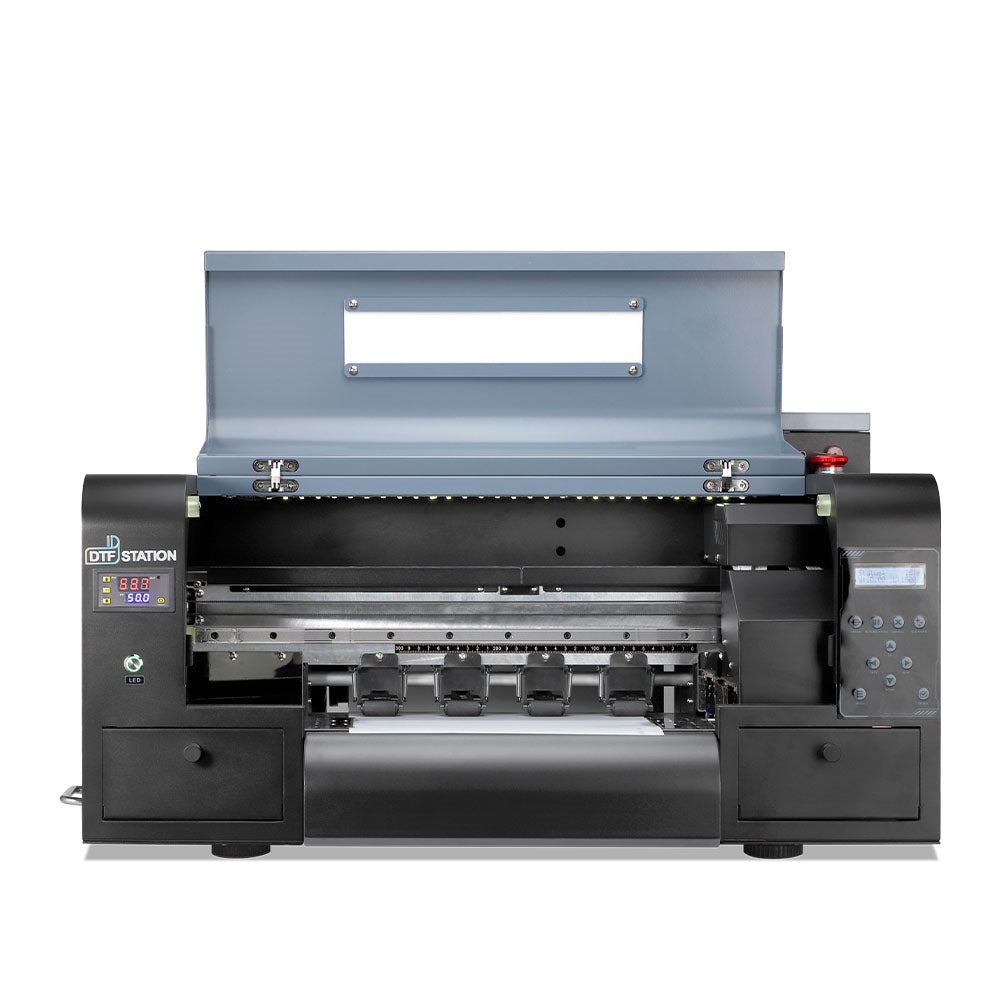

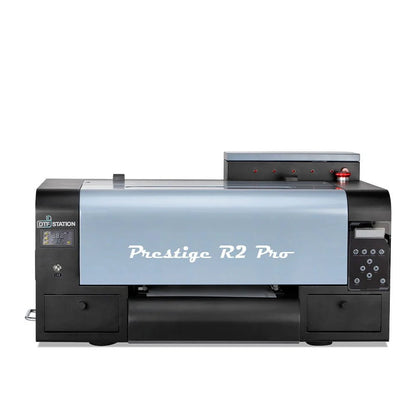

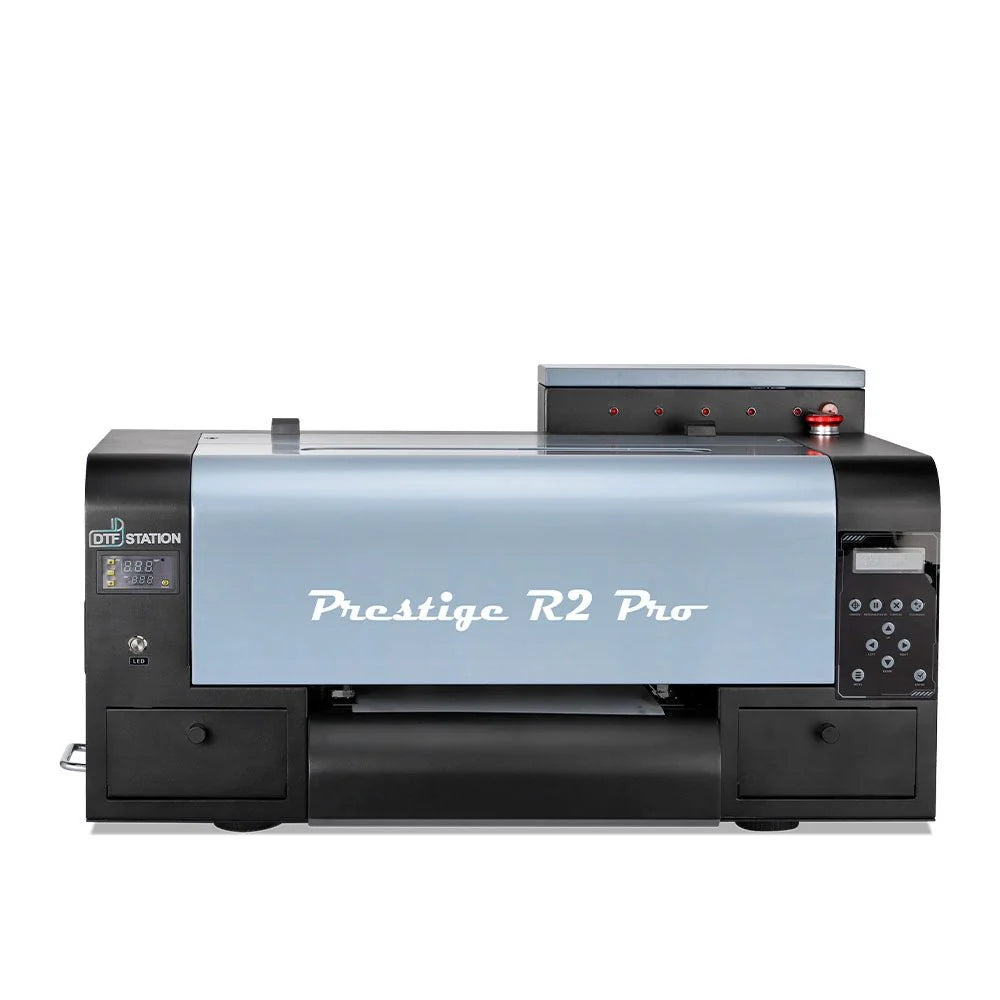

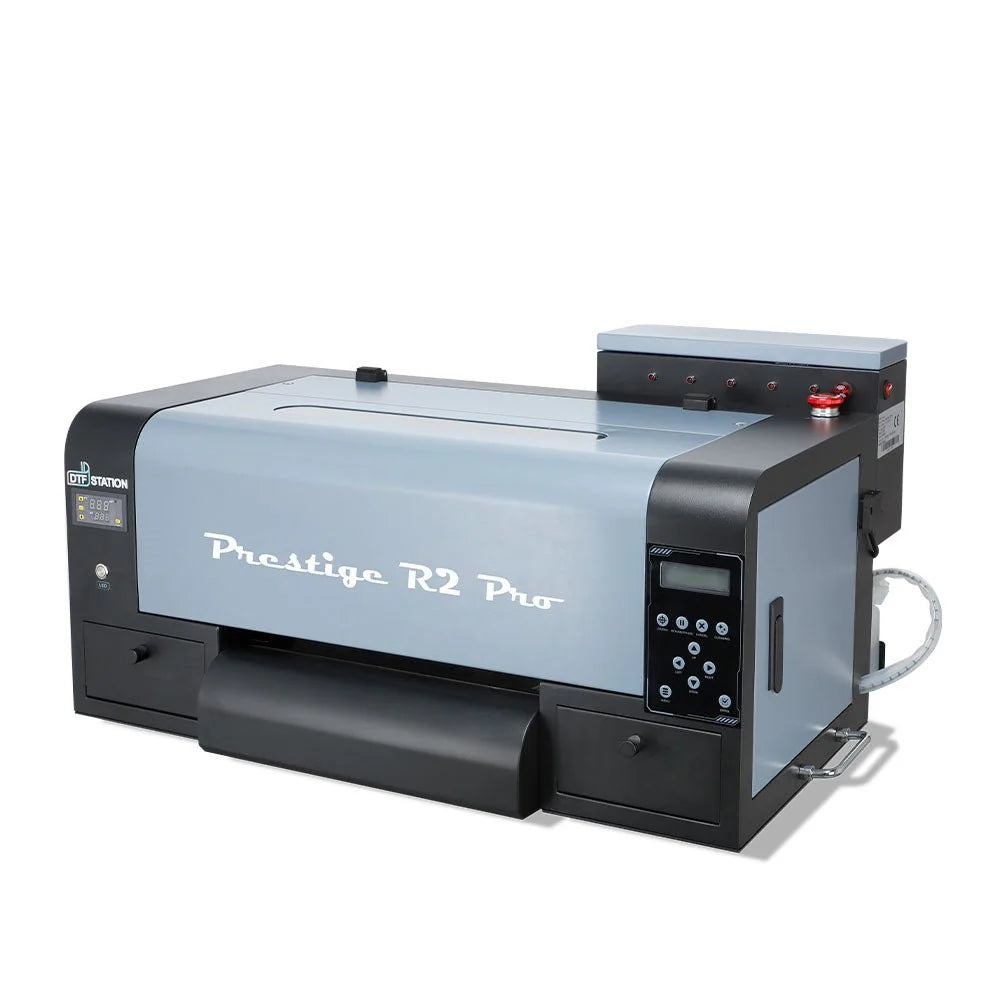

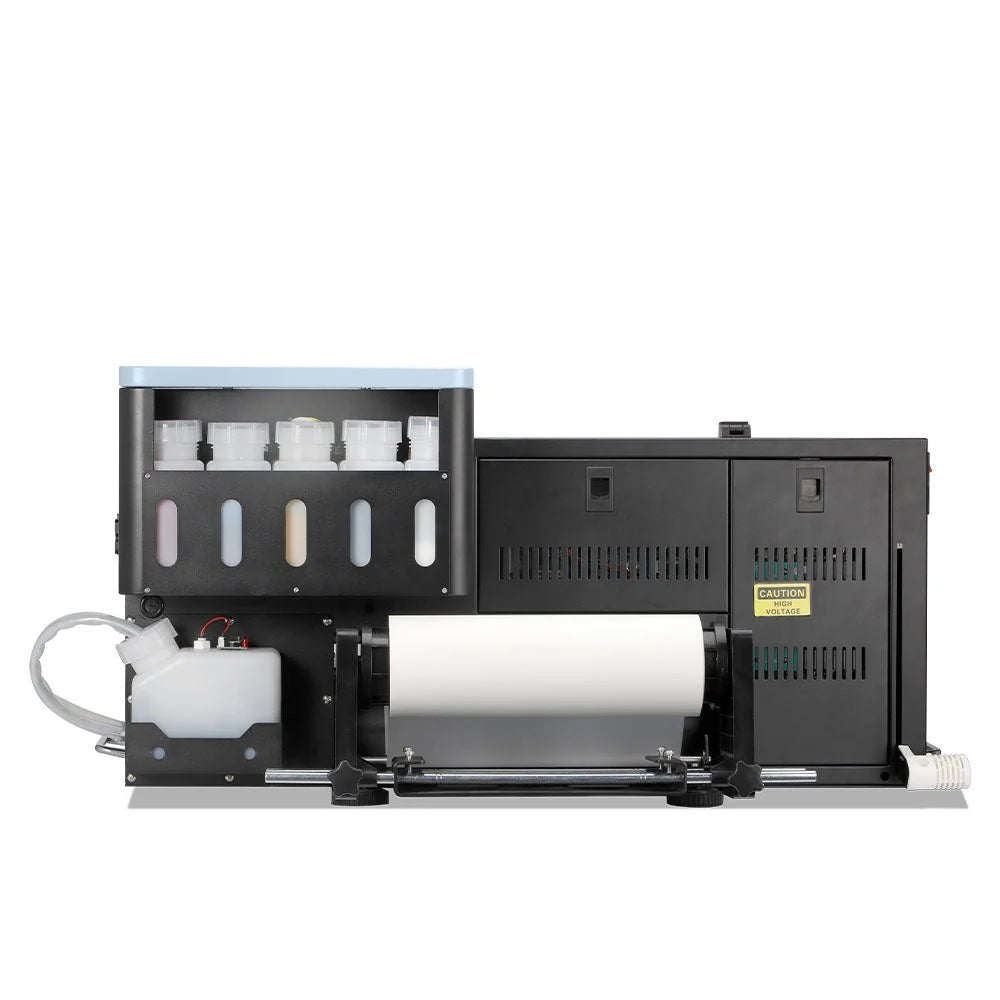

Unleash your printing potential with the DTF Station Prestige R2 Pro DTF Printer - true production printing at a value and size you can't find anywhere else. This 13" powerhouse boasts dual Epson i1600 print heads for enhanced reliability and vibrant, crisp prints, alongside a suite of features for easy use and maintenance. Elevate your printing today.

With a printing speed of 30-35 sq. ft. per hour and the powerful, this compact printer is perfect for intermediate customers looking for professional results.

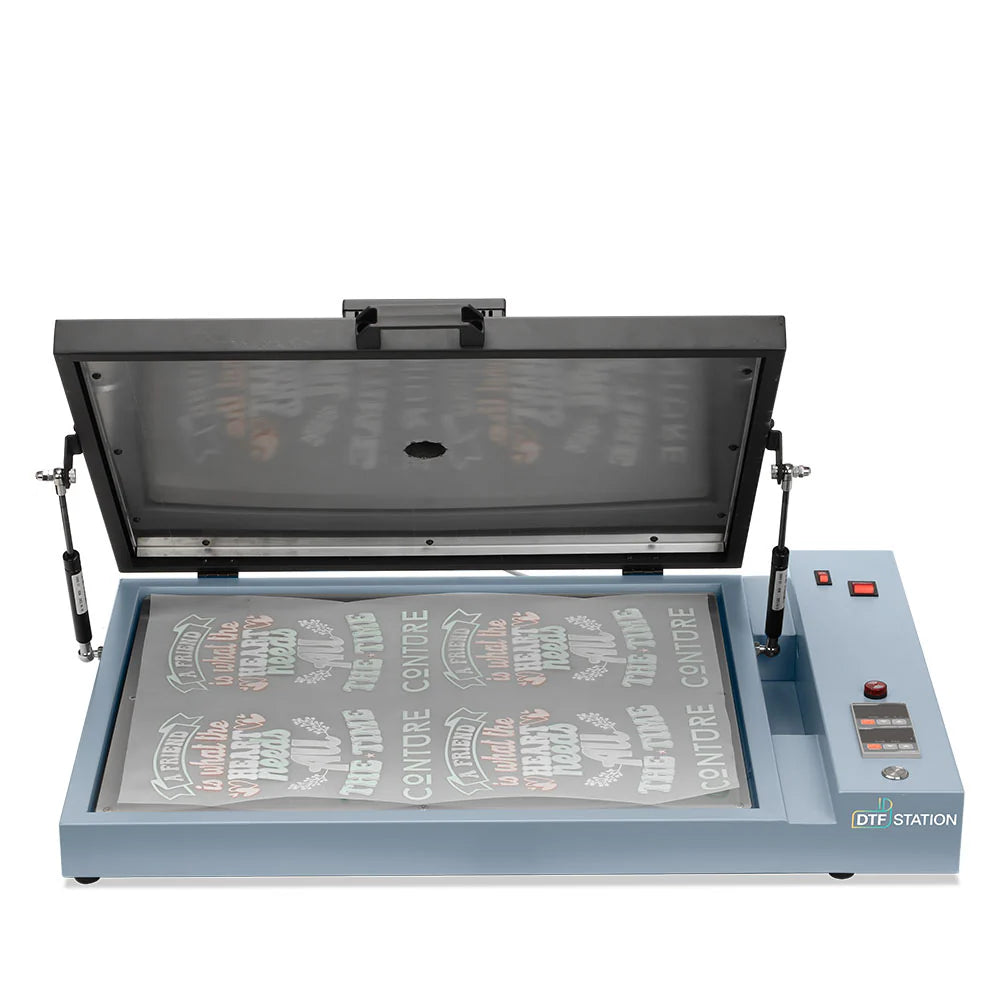

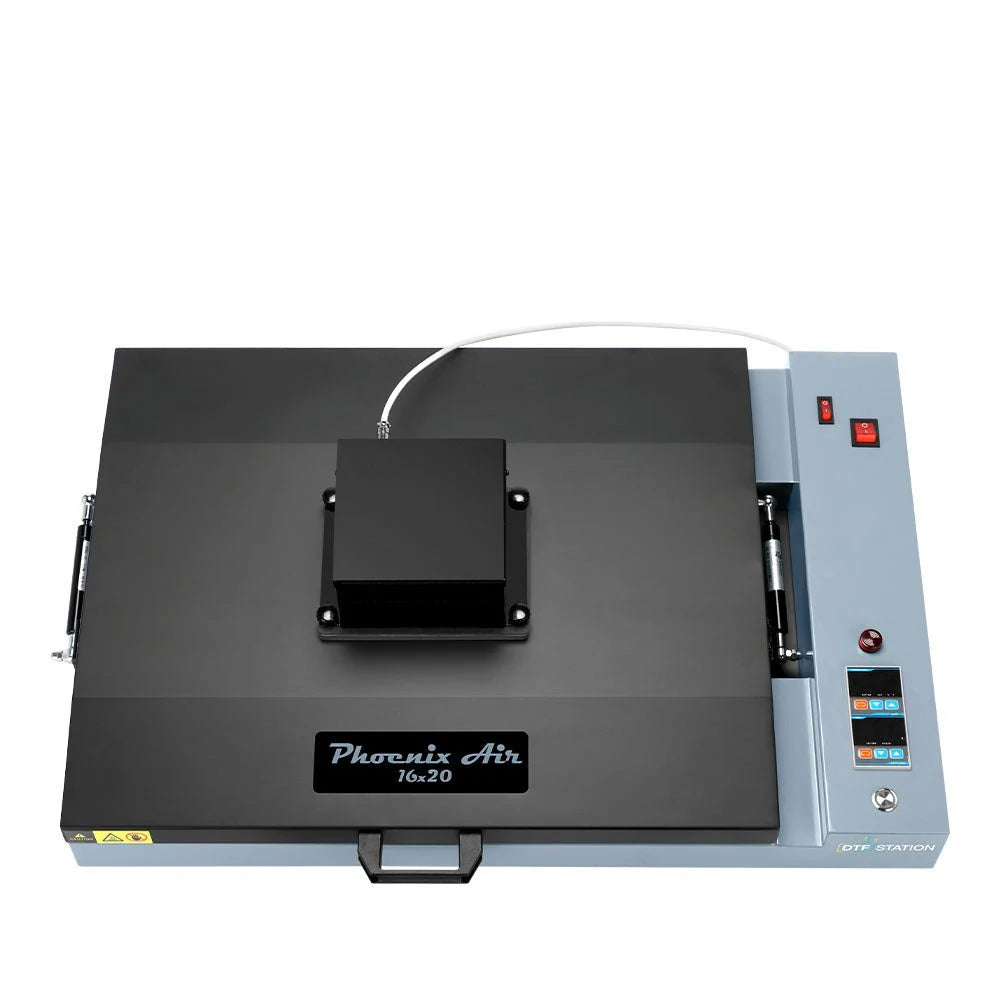

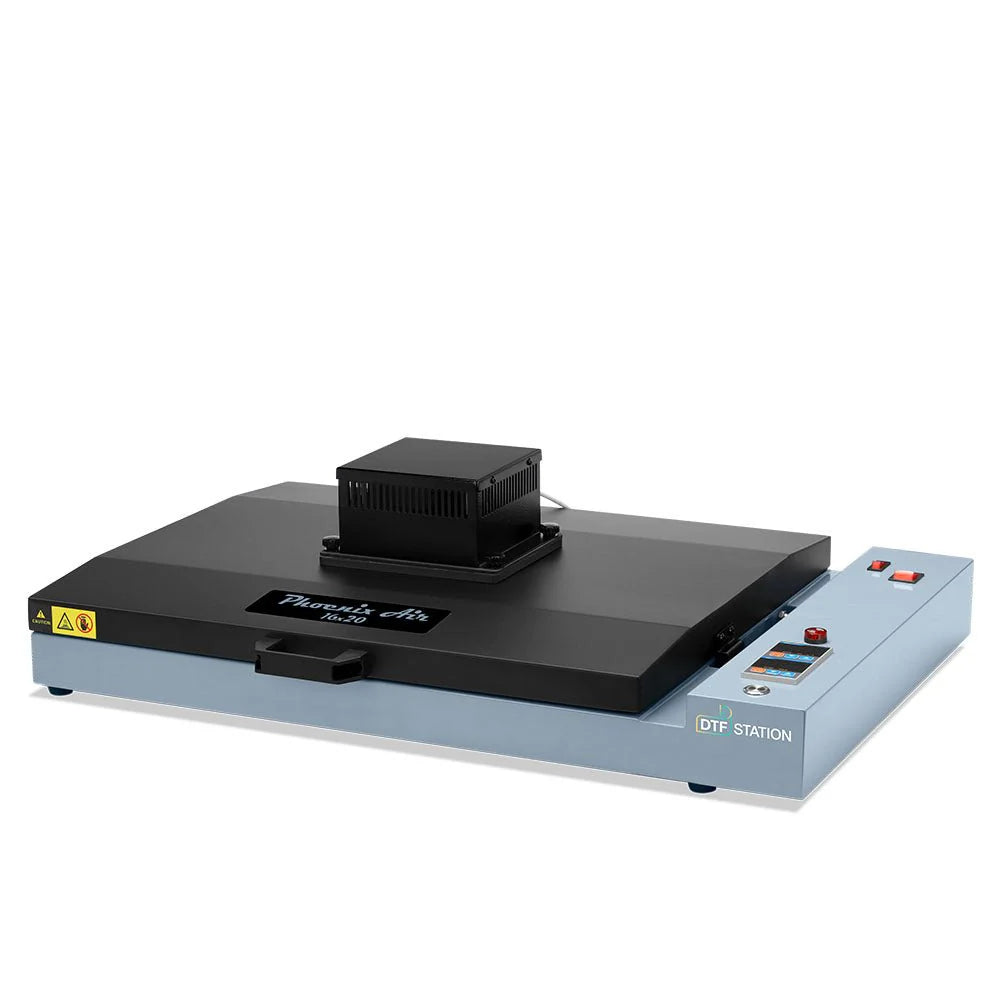

The DTF Station Phoenix Air 16" x 20" Curing Oven is a professional-grade curing oven designed specifically for DTF printing. With its built-in air purifier, it ensures a clean and efficient curing process, resulting in high-quality prints every time.

*Available for local pickup in California, call for availability*

Features and Benefits:

• Speed: 30-35 sq. ft./hour, Production Level Resolution (720x1200)

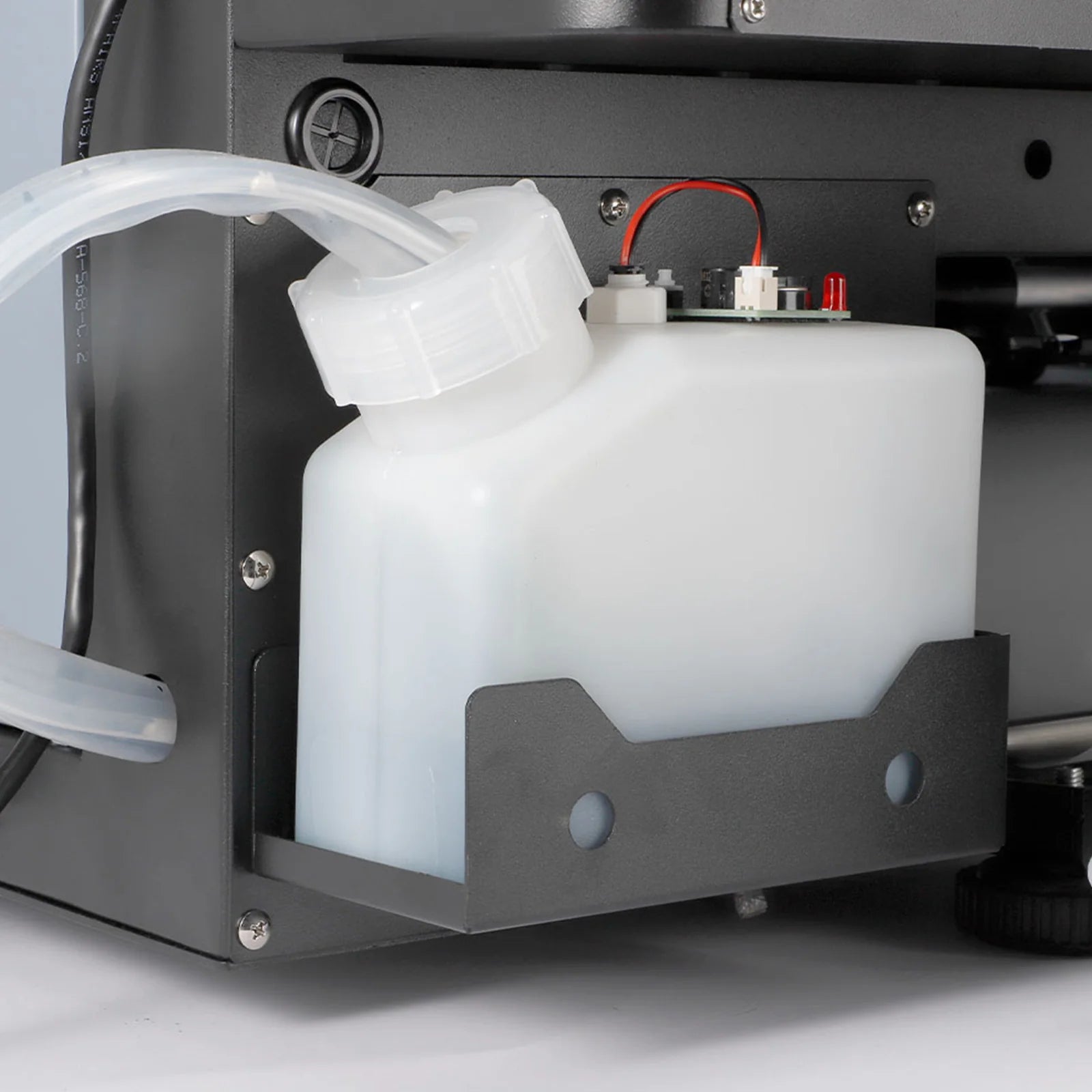

• White Ink Management System (WIMS): Timed white ink stirring system to circulate and maintain white ink inside the printer
• Passive Auto-Cleaning: When the printer is left on, it will automatically maintain and clean the printhead every 4 hours
• Active Auto-Cleaning: During set intervals (even during printing), the printer can stop to clean the printhead
• Head Strike Sensor: Helps prevent damage to the printhead

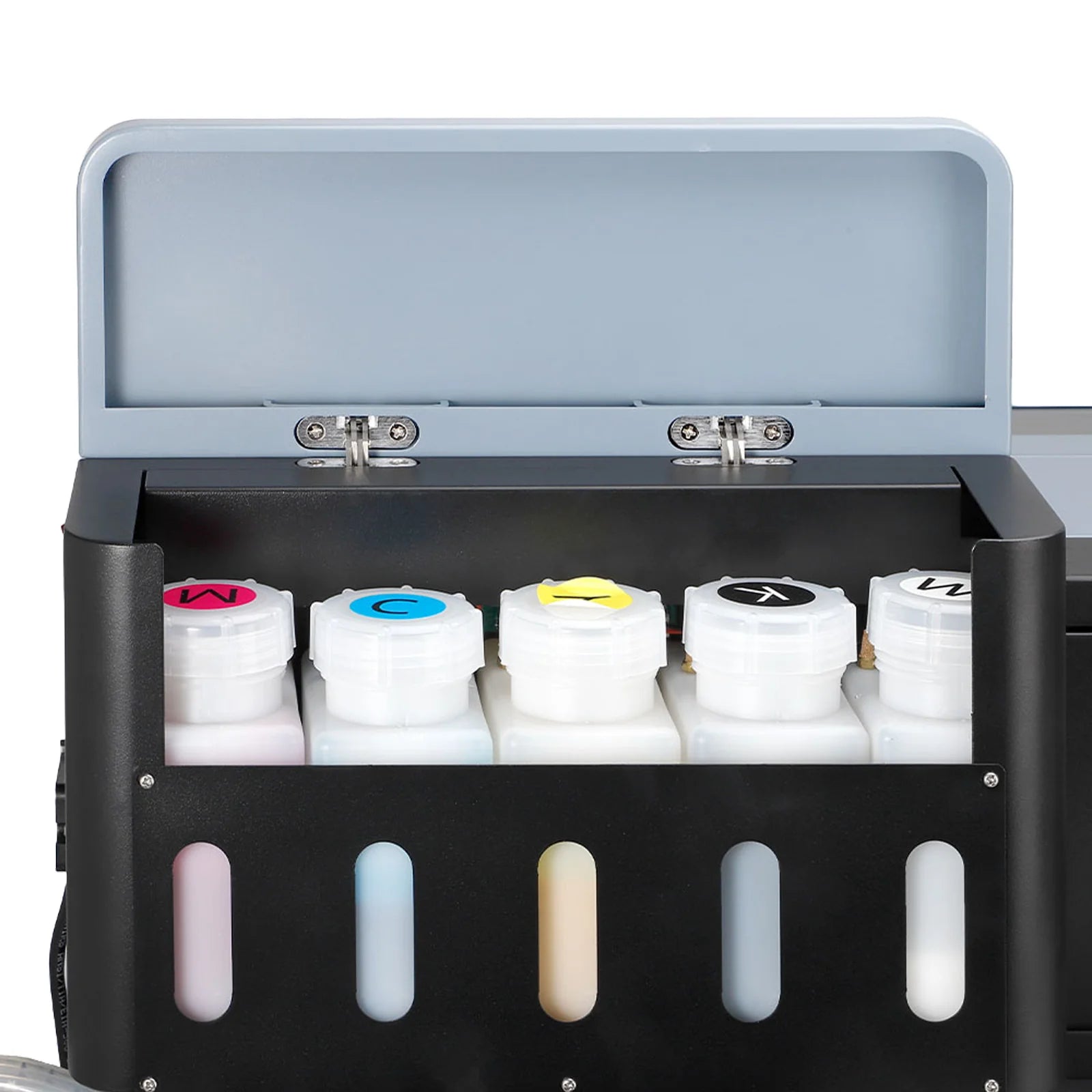

• 1 Liter Bulk Ink Cartridges: More ink for all your printing needs
• Auto Ink Alert System: Informs the user when ink is running low

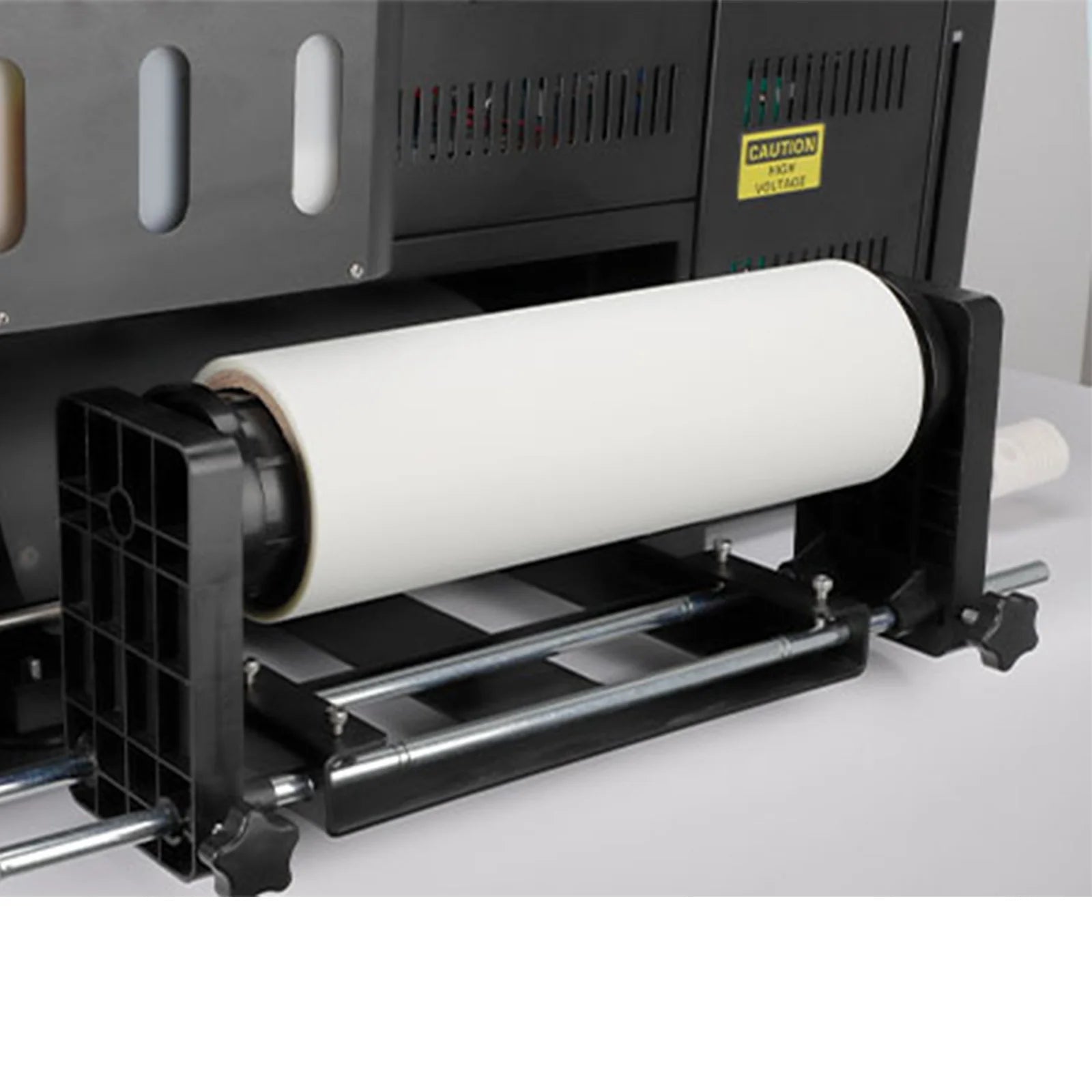

• Automatic Film Sensor: If film runs out/is not detected, stops printing
• Size: Production power and quality in a desktop size
• Great for Intermediate Users: Perfect balance of power and affordability

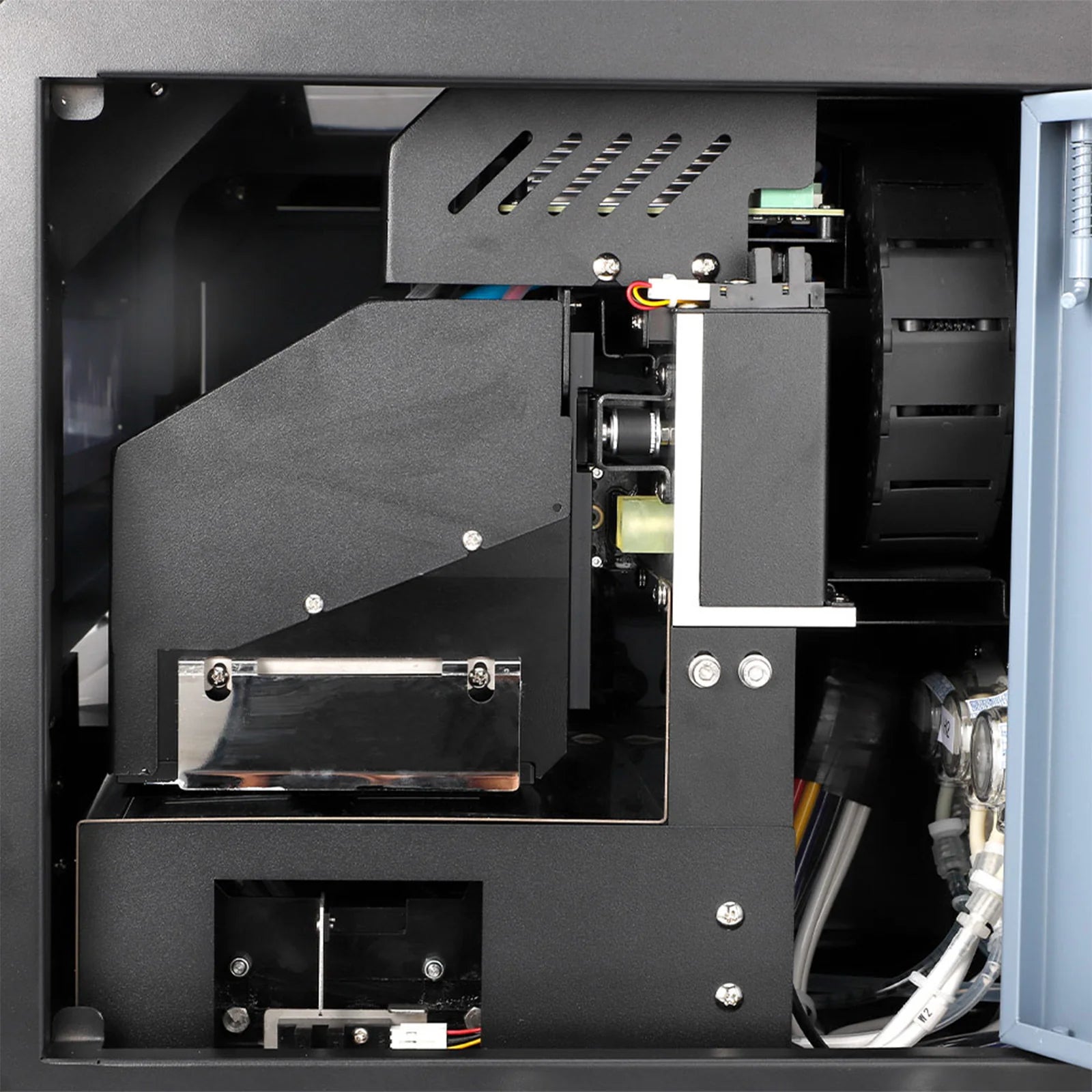

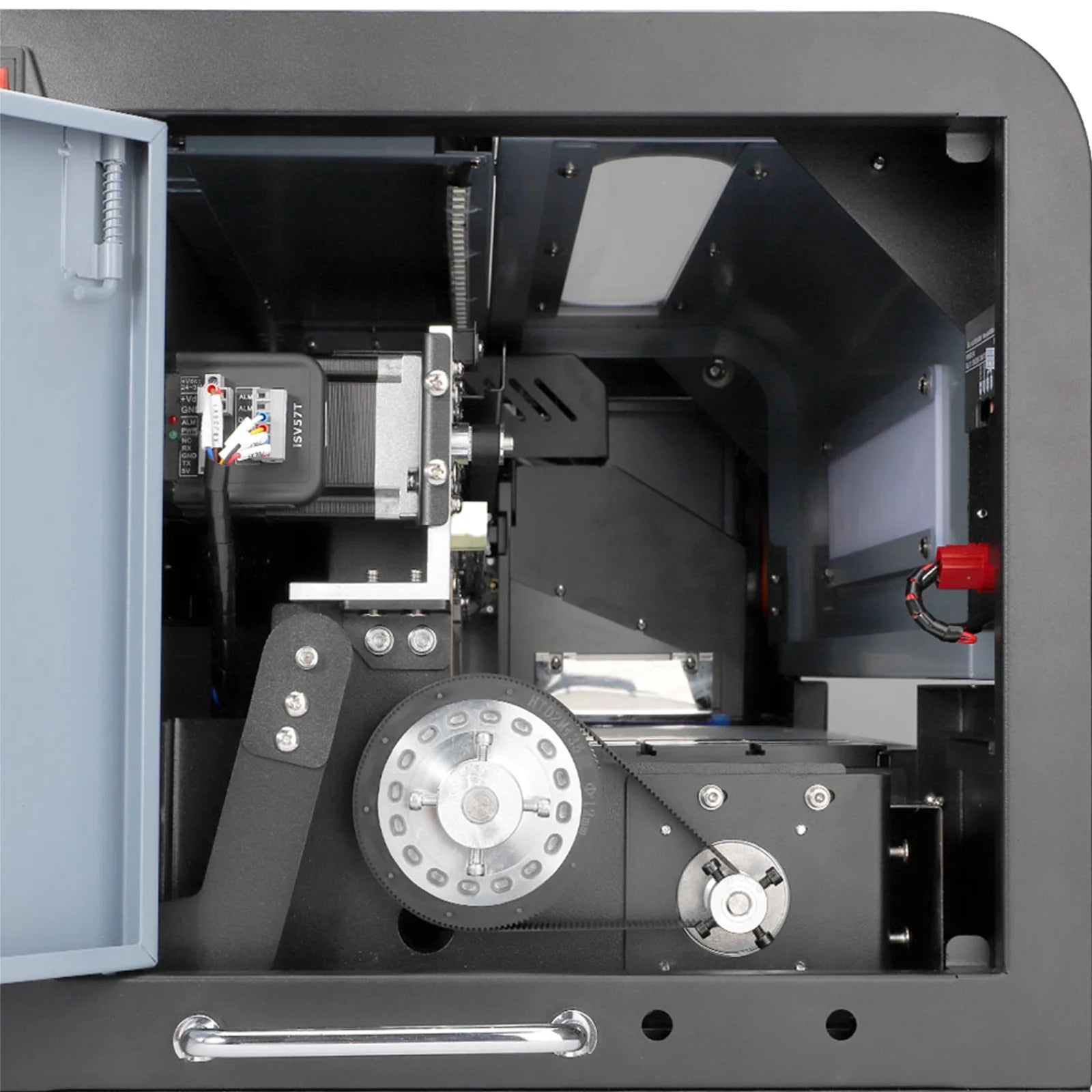

• Easy Access/Repair: Intuitive, labeled board design and connections for easy access and repair
• Automated solution with optional
• Cure Transfers within a minute at 230~248°F
• Bottom Heating Element Rather than Top

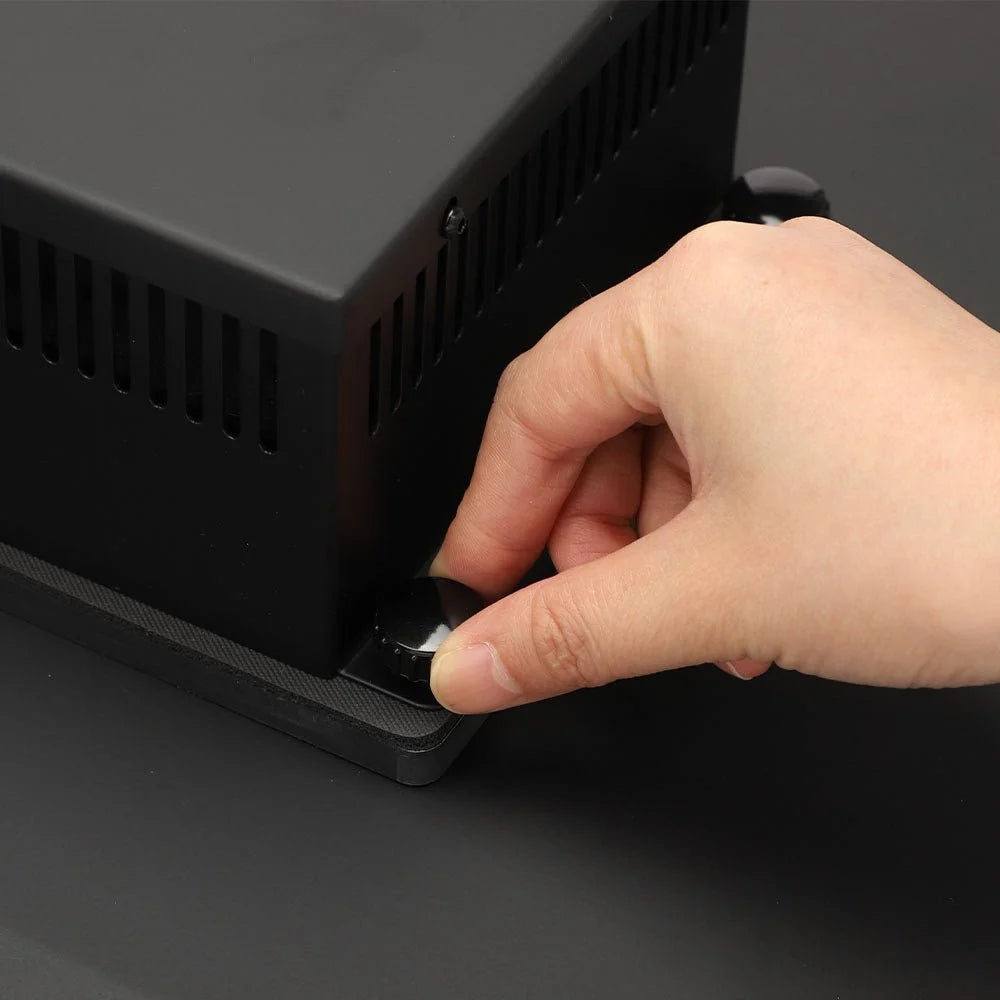

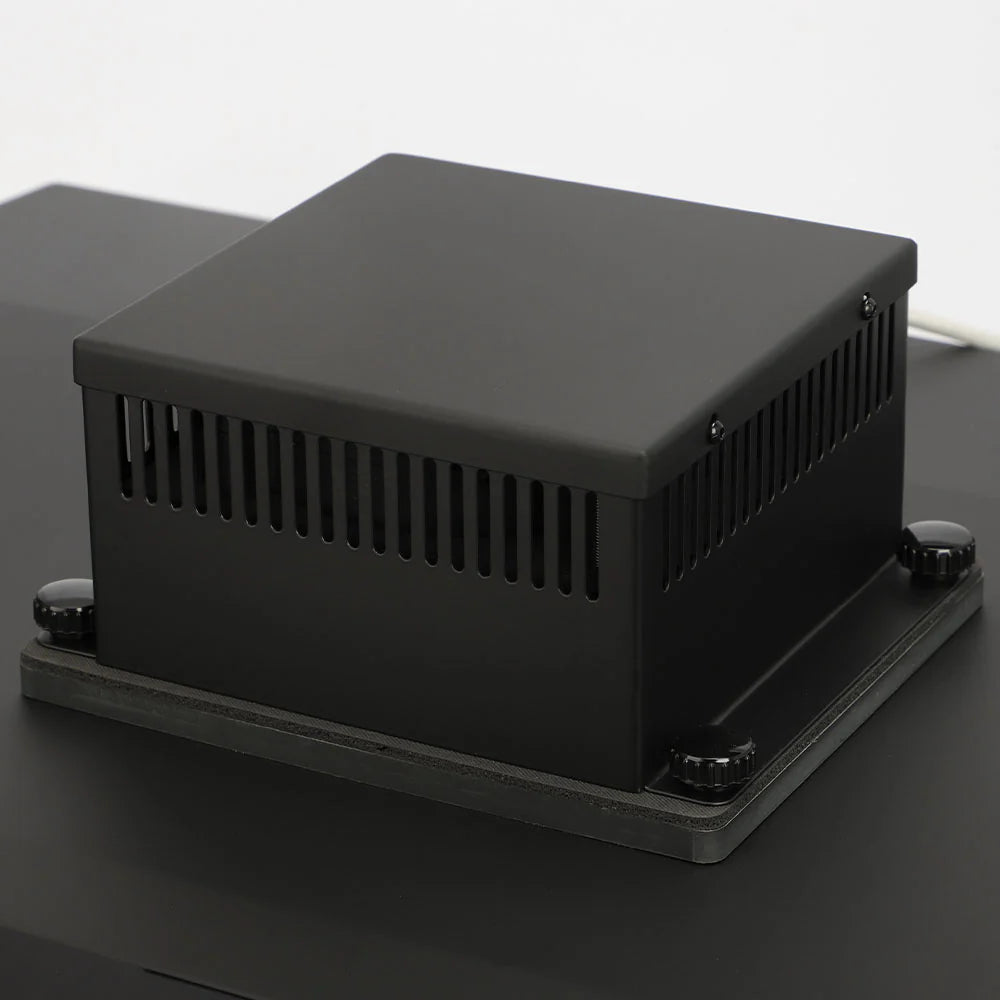

• Self Contained Purification system
• Replace Filter 1~3 months depending on usage

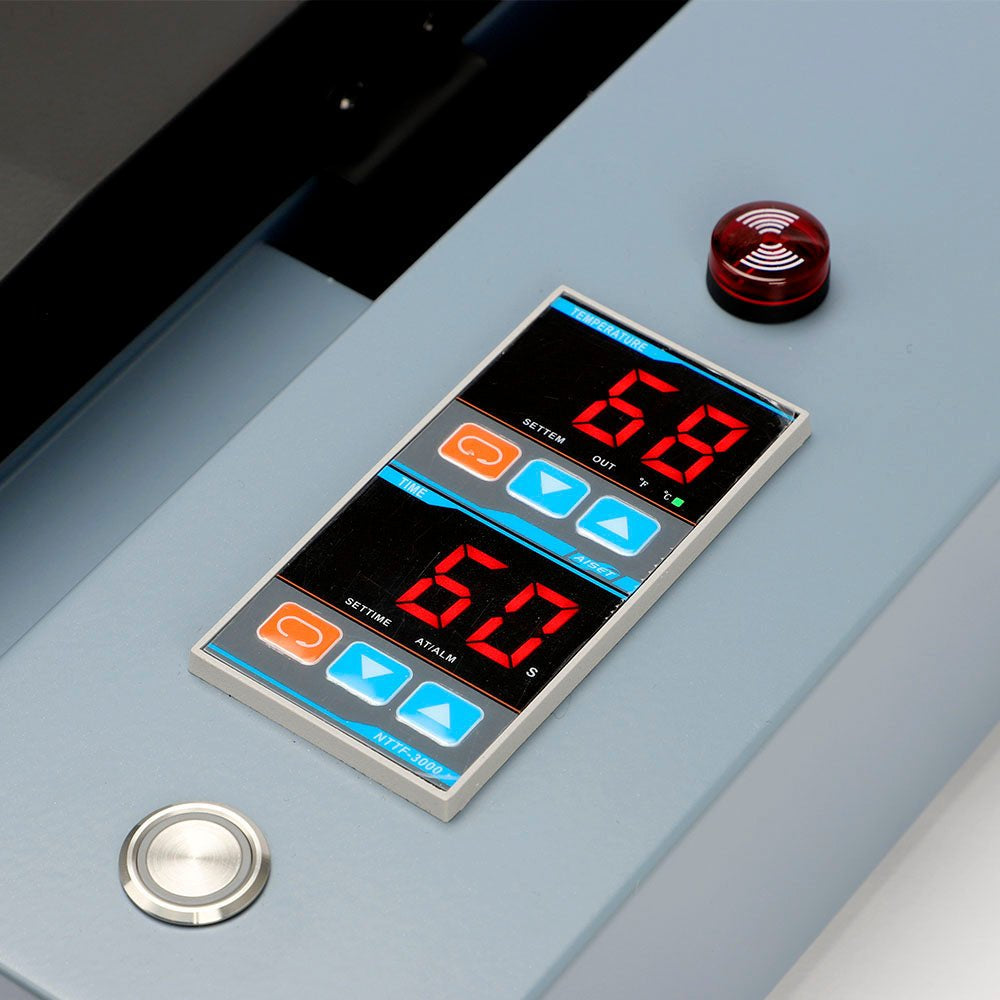

• Digital Control Unit: easy to set & allows precise settings of temperature and time for consistent results

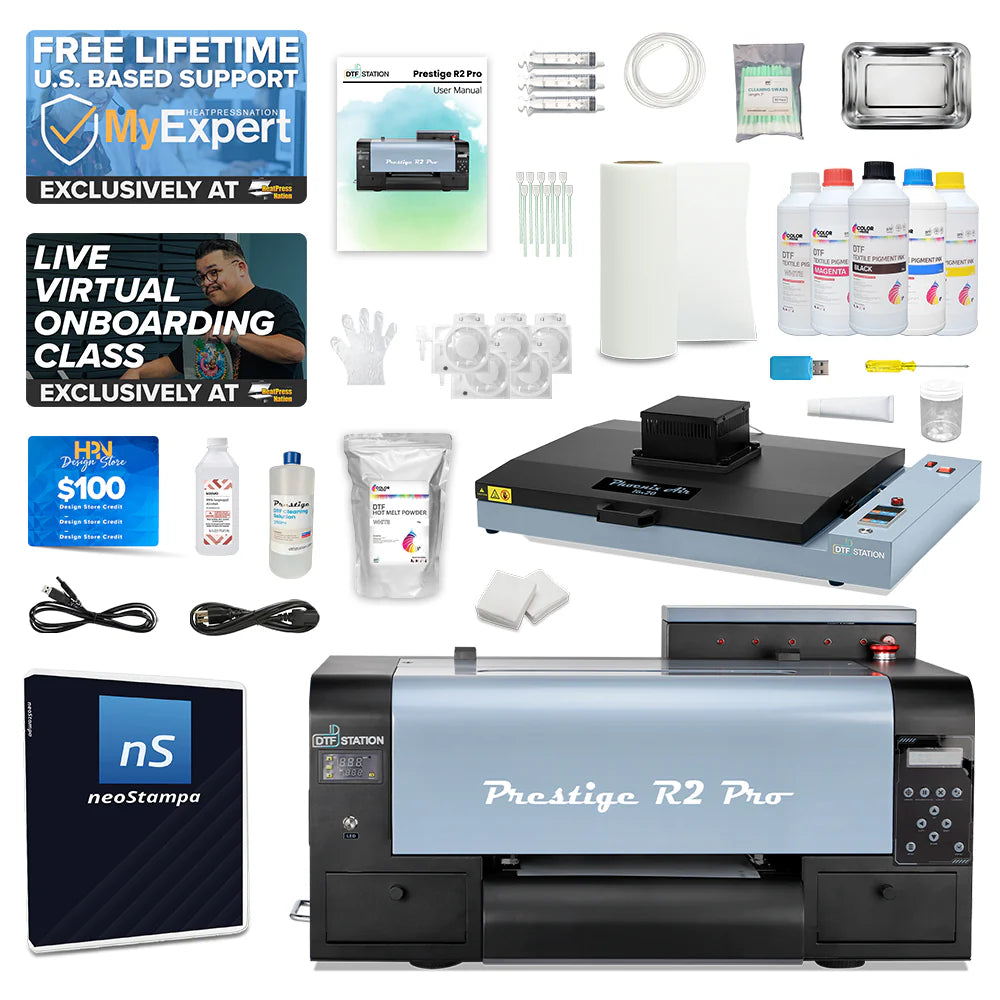

What's Included:

• DTF Station Prestige R2 Pro DTF Printer
• neoStampa RIP Software
• Color Max DTF Pigment Ink (CMYKW) - 1kg(1 each)
• Color Prime Quick Glide DTF Film Roll - A3+ (13") x 109 yd
• Color Prime Hot Melt Powder - 1kg
• DTF Station Cleaning Solution - 250 ml
• Free Lifetime US-based MyExpert Technical Support
• Live Virtual On-Boarding Class
• 300 Credits to the
• Isopropyl Alcohol 16oz (Brand and bottle shape may differ from pictured bottle)
• Lintless Wipe 4 x 4 30 Each
• DTF Station 7" Cleaning Swabs - 50 Each
• Power Cord
• Tools
• Ink Dampers
• Ink Filters
• Ink Tube
• Ink Diverter
• USB Dongle
• Ribbon Cables
• Screws

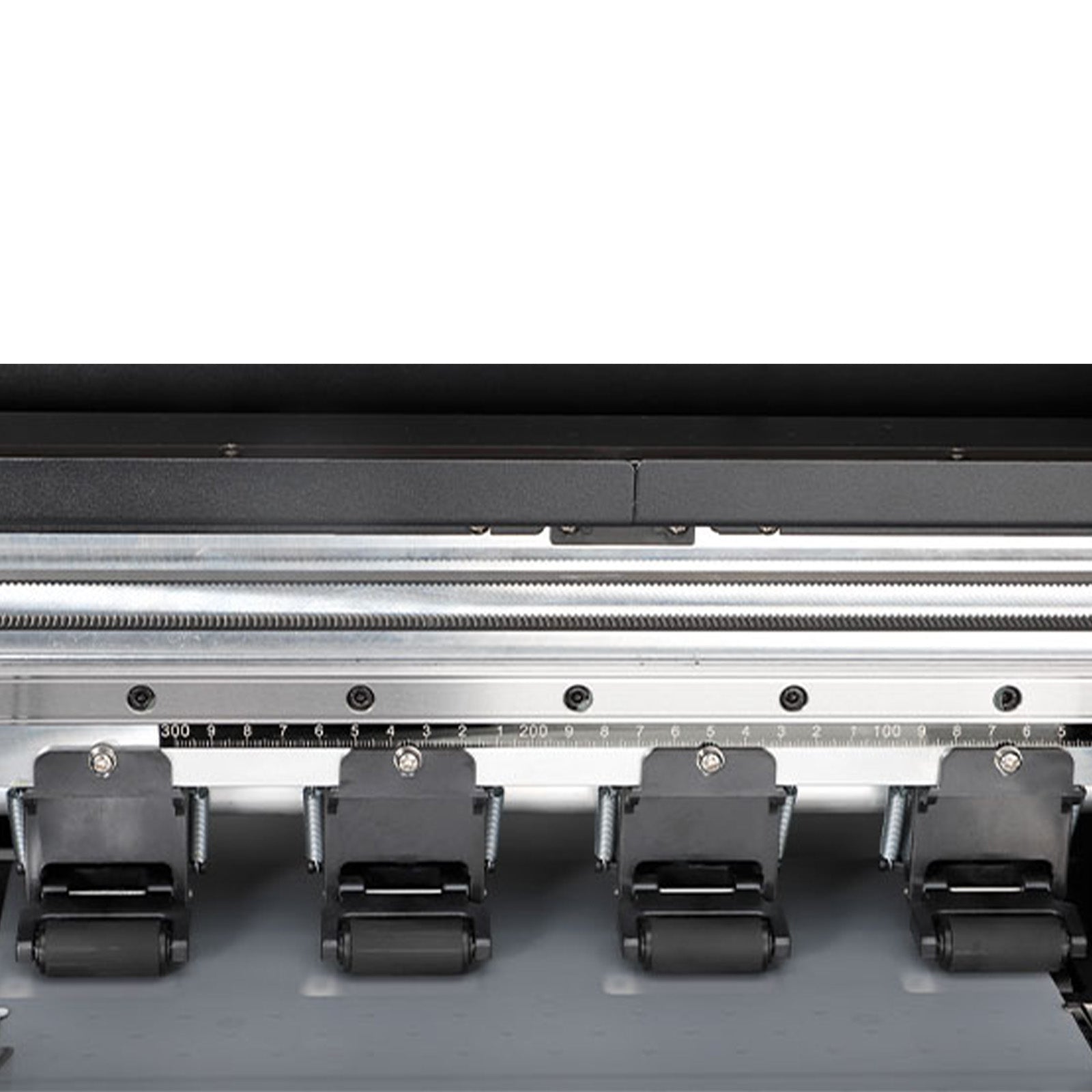

• Feed roller components

Not Included, but Also Needed:

• (used to press final print to garment - 16" x 20" recommended)

• Humidifier (to keep the humidity above 50% in the print room)
• Computer with Windows 10 or higher

Upgrading from the A4 model? See the for getting a credit.

Benefits of Direct to Film Transfers:

	Any Color, Any Material: DTF transfers seamlessly adhere to multiple fabric types, regardless of color. Decorate cotton, nylon, polyester, leather, denim, and more. Unlock a world of vibrant possibilities for your designs!
	Easy to Use: Heat and pressure are all you need to transfer your designs. No need for pretreatment spray or tricky adhesive sheets. The transfer process is so simple that you can even sell your transfers for customers to apply themselves.
	Durable: Engineered to withstand the test of time, DTF transfers boast unparalleled durability, ensuring that your designs remain vibrant and intact through countless washes and wears.
	Soft and Stretchable: DTF transfers offer a silky-smooth touch and unparalleled stretchability, ensuring maximum comfort and freedom of movement with every wear.
	Long Shelf Life: With proper storage, DTF transfers can last for 1 year or longer. Print your more popular designs ahead of time, and press them on your schedule.

Printer Specifications:

• Printhead: Dual Epson i1600 print heads
• Mainboard: Honson
• Interface: TCP
• Software: neoStampa RIP Software (Compatible with Windows Only)
• Max. Film Width: 14.57" (37 cm)
• Max. Print Width: 13” (33 cm)
• Print Speed: 30-35 sq. ft./hour, Production Level Resolution (720x1200)
• Power Ratings: 700 Watts / 110 Volts / 6.36 Amps
• Machine Weight: 125 lb
• Machine Dimensions: 33.58” x 25.31” x 20.86”
• Shipping Weight: 143 lb
• Shipping Dimensions: 38.18” x 26.38” x 26.38”
• Daily Output: 180 pcs (Based on design size as 12" x 14", 8 hrs per day)

Curing Oven Specifications:

• Voltage: 110V
• Power: 0.88KW
• Temperature Range: 0-150°C / 300°F
• Machine Size: 29"W x 21"D x 7.75"H
• Packaging Size: 31"W x 25"D x 10.75"H
• Product Weight: 30 lbs
• Packaging Weight: 35 lbs

System Requirements

• Operating System: Windows
• Minimum RAM: 8GB
• Minimum CPU: Intel i5 2.6GHz
• Minimum Free Storage: 5GB

Note: It is recommended to turn on the air purifier ONLY while the oven timer is running. Leaving the air purifier on for prolonged periods may increase the overall temperature of the oven beyond recommended curing temperature.

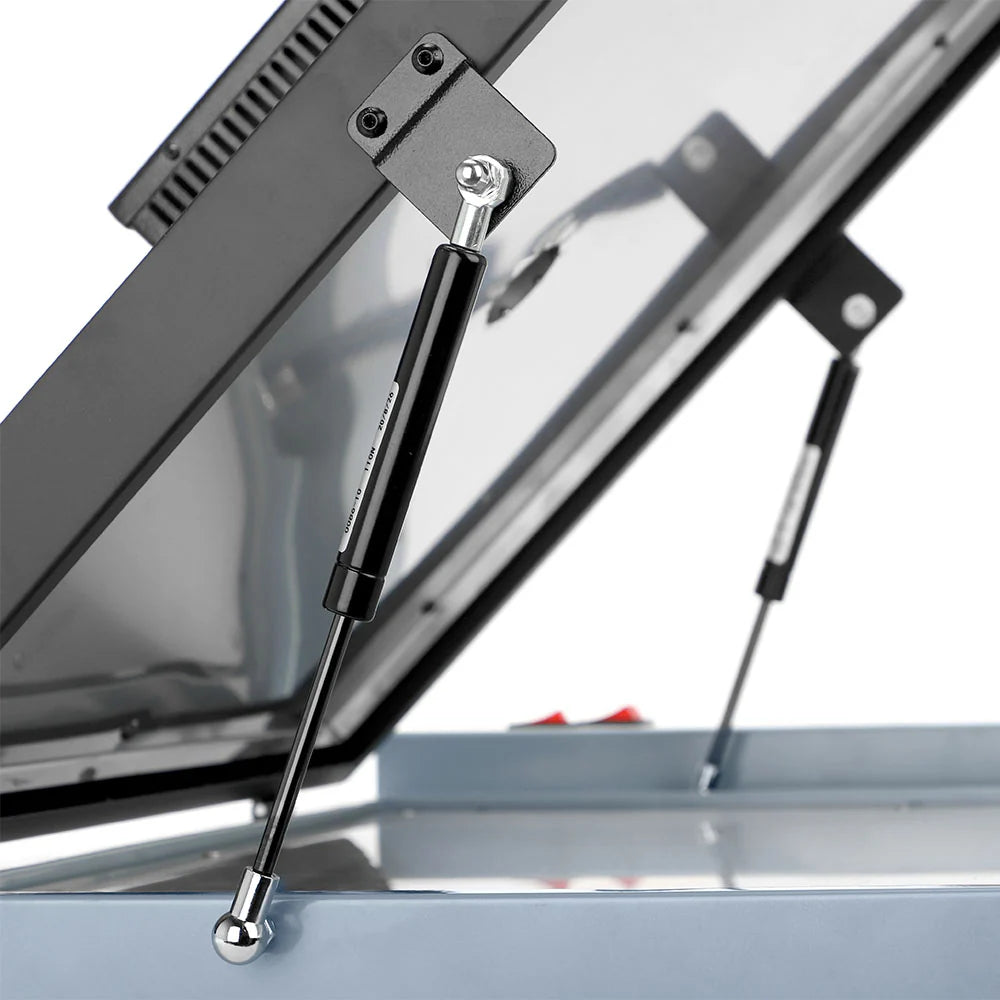

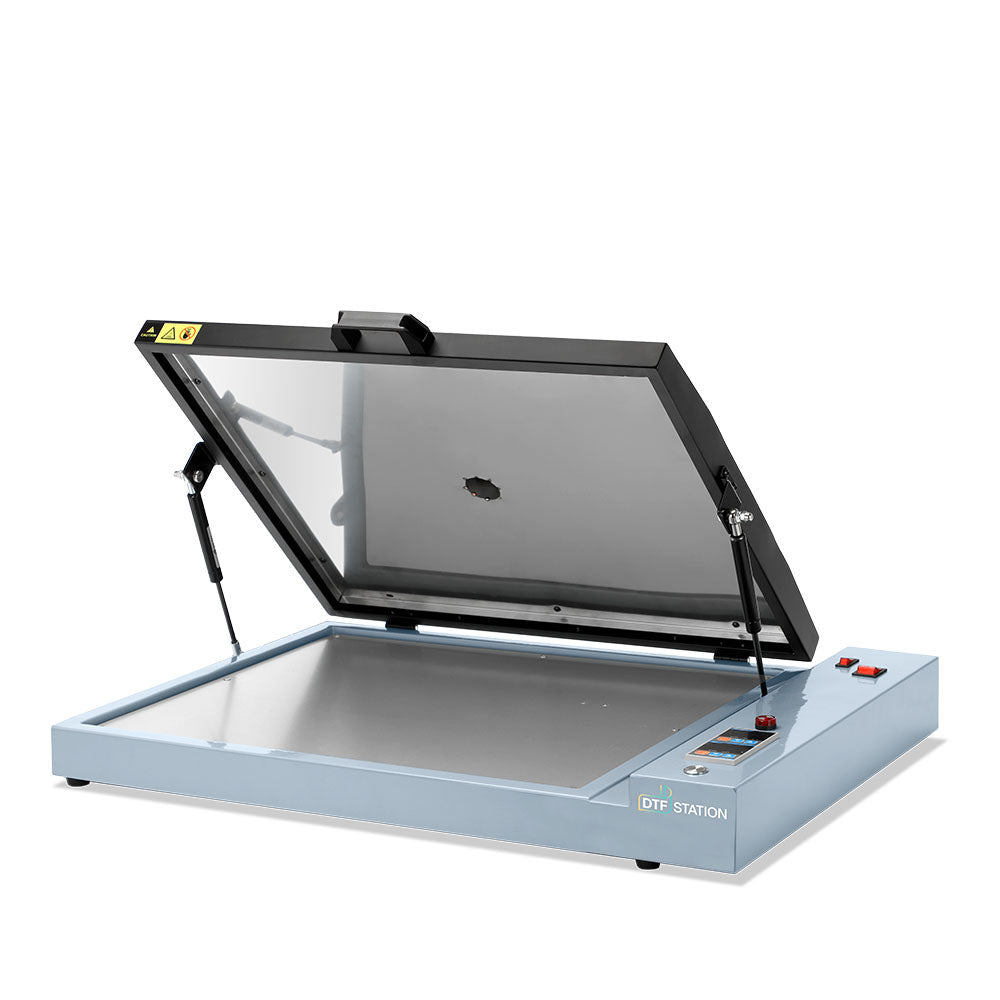

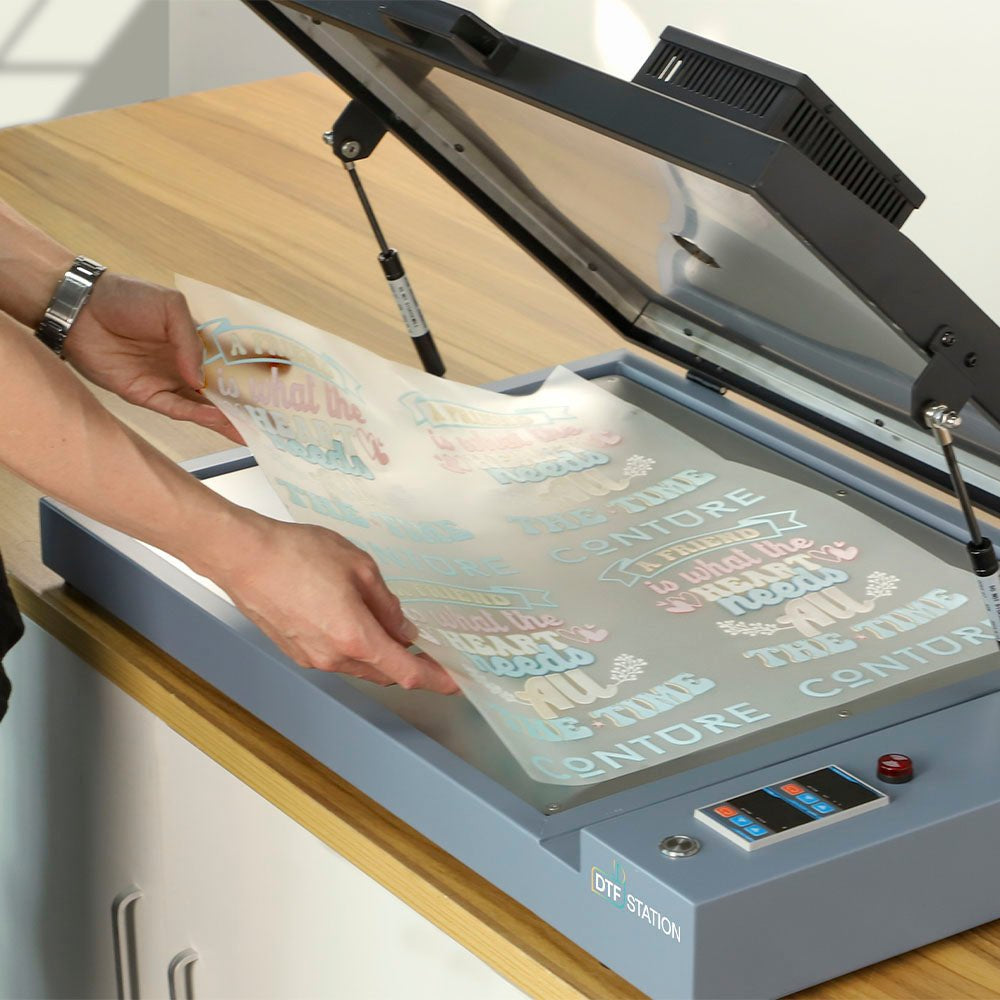

The DTF Station Phoenix Air 16" x 20" Curing Oven is perfect for curing large film sizes, such as 13" x 19", 14" x 16", 16" x 20", and more! This oven has a built-in purifier unit to ensure your production space's safety. Additionally, the new lower heating system and gas spring lifting mechanism help ensure your prints cure with less power consumption and even heating.

Note: Unlike the previous DTF Station Phoenix 16" x 20" Curing Oven, the DTF Station Phoenix Air 16" x 20" oven uses an open-top/platform, rather than a tray, to cure films. See the for similar heating methods.

WARNING: Work in a WELL VENTILATED AREA and use protective equipment when working with DTF products and processes. It is highly recommended the use of a to handle the fumes caused by TPU adhesive powder curing. Bodily protection, including the use of PPE equipment such as a full body covering, a respirator / N95 mask, goggles and gloves are recommended to protect against TPU adhesive powder (prior to curing) that may become airborne due to handling. Inhalation of TPU adhesive powder or fumes may be hazardous to your health. The use of DTF equipment, chemicals, powders, inks and all accessories are at the sole risk of the user. DTF equipment is intended for use in a commercial environment. It is not recommended to use DTF equipment in a residential, or in-home setting. DTF inks and film require a good humidity environment - over 50% humidity is highly recommended to minimize the risk of ink clogs and film buckling. Add a Fume Extractor to this package for sufficient fume extraction.

DTF printers require daily use/maintenance! You must perform a head cleaning, nozzle check and a test print every day to ensure the printer is running smoothly and to prevent printhead and capping station clogs. Printheads and capping stations are considered consumables and are not covered under warranty if they clog. Clogs can occur even after one print, so maintenance must start the moment you install ink.

===

tab_instructions

===

tab_warranty

The HPN MyExpert Support guarantee is our commitment to Lifetime Technical Support. No matter where you are in your product's life cycle, we will be here to provide support to your product and make sure you are fully covered.

Our MyExpert Support will always be there for you so you can purchase with confidence!

In addition, DTF Station, the manufacturer, offers a conditional 6-month warranty on 1 printhead with virtual training, or if you have On-Site training, that jumps up to a 1-Year warranty on up to 2 printheads. . For warranty claims, we may need to involve the official DTF Station team depending on the reported issue. Be aware that the use of non-DTF Station ink, film, or other supplies will void the warranty. Details depend on training option selected. Terms & Conditions apply. Visit link for full details.
